China Powerking Cable&Connector price list
(USD,EXW)点击交谈 点击交谈点击交谈点击交谈
MODEL
 SPECIFICTION
PRICE(USD)

PK_BNC_DC_25F


 BNCF/DCM-BNCF/DCF L=25feet,(26*0.10Red/AC30*0.09)+(26*0.10Yellow/AC30*0.09)The cored wire is made of copper imbedded with aluminum,and is wrapped with pure copper,OD4.0*2F(Blank/White),( Cored wire resistance≤0.8R,Wrapped Wire resistance≤0.95R), Cable color(white or black) is optional.
2$
PK_BNC_DC_50F
 BNCF/DCM-BNCF/DCF L=50feet,(26*0.10Red/AC30*0.09)+(30*0.10Yellow/AC30*0.09)The cored wire is made of copper imbedded with aluminum,and is wrapped with pure copper,OD4.0*2F(Blank/White),( Cored wire resistance≤1.4R,Wrapped Wire resistance≤1.5R),Cable color(white or black) is optional.
3.5$
PK_BNC_DC_60F
 BNCF/DCM-BNCF/DCF L=60feet,(26*0.10Red/AC30*0.09)+(30*0.10Yellow/AC30*0.09)The cored wire is made of copper imbedded with aluminum,and is wrapped with pure copper,OD4.0*2F(Blank/White),( Cored wire resistance≤1.7R,Wrapped Wire resistance≤2.3R),Cable color(white or black) is optional.
4$
PK_BNC_DC_100F
 BNCF/DCM-BNCF/DCF L=100feet,(26*0.10Red/AC30*0.09)+(30*0.10Yellow/AC30*0.09)The cored wire is made of copper imbedded with aluminum,and is wrapped with pure copper,OD4.0*2F(Blank/White),( Cored wire resistance≤2.55R,Wrapped Wire resistance≤2.75R),Cable color(white or black) is optional.
6.3$
PK_BNC_DC_125F
 BNCF/DCM-BNCF/DCF L=125feet,(26*0.10Red/AC30*0.09)+(30*0.10Yellow/AC30*0.09)The cored wire is made of copper imbedded with aluminum,and is wrapped with pure copper,OD4.0*2F(Blank/White),( Cored wire resistance≤2.8R,Wrapped Wire resistance≤3.4R),Cable color(white or black) is optional.
7.7$
PK_BNC_DC_200F
 BNCF/DCM-BNCF/DCF L=200feet,(26*0.10Red/AC30*0.09)+(30*0.10Yellow/AC30*0.09)The cored wire is made of copper imbedded with aluminum,and is wrapped with pure copper,OD4.0*2F(Blank/White),( Cored wire resistance≤3.1R,Wrapped Wire resistance≤4.4R),Cable color(white or black) is optional.
11.9$
PK7800W(white)
PK7800B(black)		 BNCF/DCM/AUDM-BNCF/DCF/AUDM L=60feet,(26*0.10Red/AC30*0.09)+(30*0.10Yellow/AC30*0.09)
+(26*0.10White/AC30*0.09)The cored wire is made of copper
imbedded with aluminum,and is wrapped with pure copper,
OD4.0*2F(Blank/White),( Cored wire resistance≤1.68R,Wrapped Wire resistance≤1.8R),PK7800W is White, PK7800B is black. Cable color(white or black) is optional.
6$
PK7900W(white)
PK7900B(black)		 BNCF/DCM/AUDM-BNCF/DCF/AUDM L=120feet,(26*0.10Red/AC30*0.09)+(30*0.10Yellow/AC30*0.09)
+(26*0.10White/AC30*0.09) The cored wire is made of copper
imbedded with aluminum,and is wrapped with pure copper,
OD4.0*2F(Blank/White),( Cored wire resistance≤3.1R,Wrapped Wire resistance≤3.3R),PK7900W is White, PK7900B is black. Cable color(white or black) is optional.
11.1$
PKDCLINE
 30CM 12V DCline with 1 DC connector ,Pure copper cored wire.
0.1$
PKSplitter 1To4
DC 12V splitter,1 to 4.
0.7$
PKSplitter 1To8



DC 12V splitter,1 to 8.

1.5$

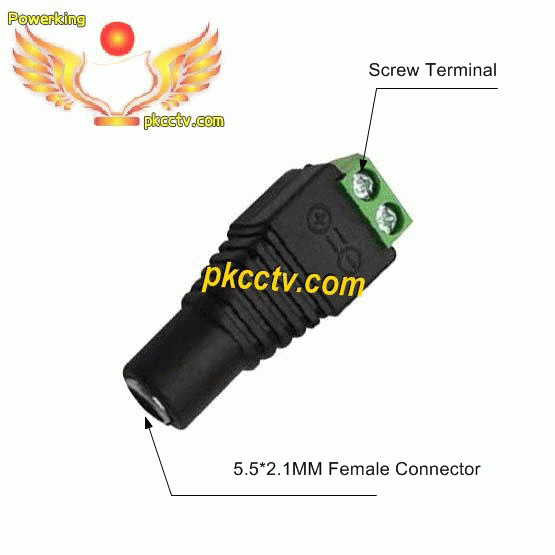

PKDCC_F
 DC connector with two terminal screws，female.
0.18$

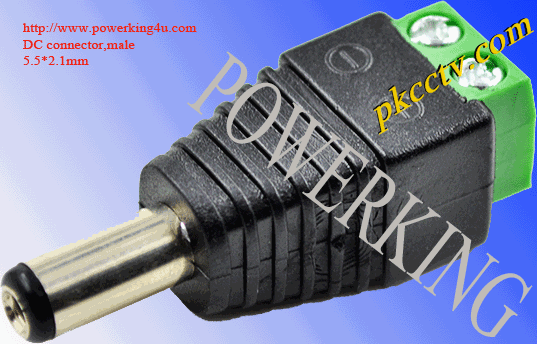

PKDCC-M
 DC connector with two terminal screws，male.
0.23$

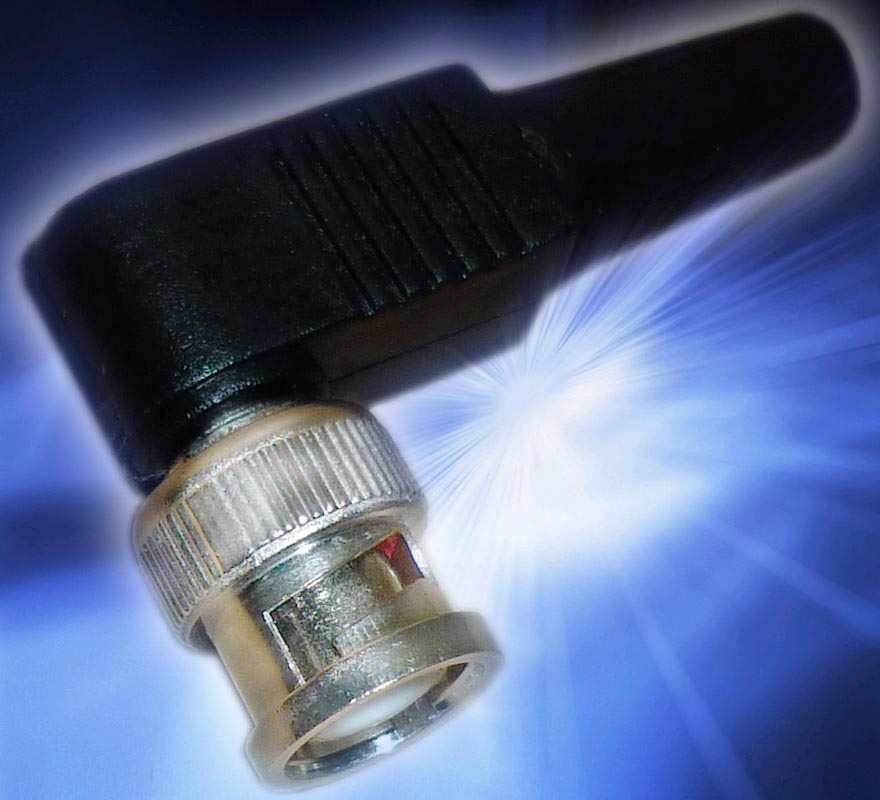

BNC plastic elbow:PK_BNC_PT

BNC connector with plastic capped pipe;
The pin is brass;
Plastic elbow BNC;
The BNC is male.

0.15$
BNC-5:PK_BNC-5
 Pin, clamp-wide copper Used for
municipal security projects, such as roads
Corrosion-resistant
Impedance:75ohm;
0.18$

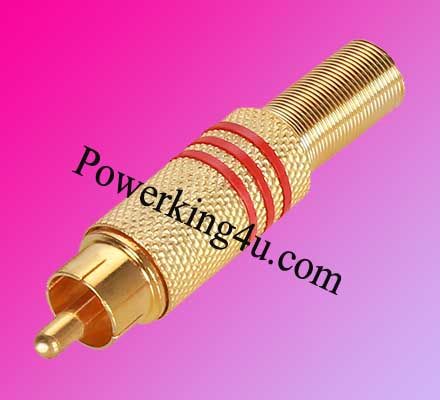

PK-RCA
 RCA plug,gold plated.
Used for speakers,video,audio
0.19$

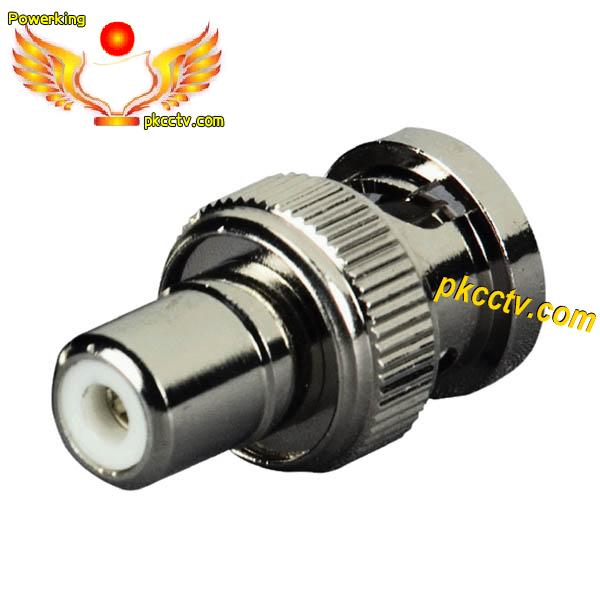

PK-BNCM-RCAF

BNC male to RCA female;
Inner brass,outside steel ;
Impedance:75ohm;
Applicable to all types of security projects;
Intermediate BNC connection;

0.16$

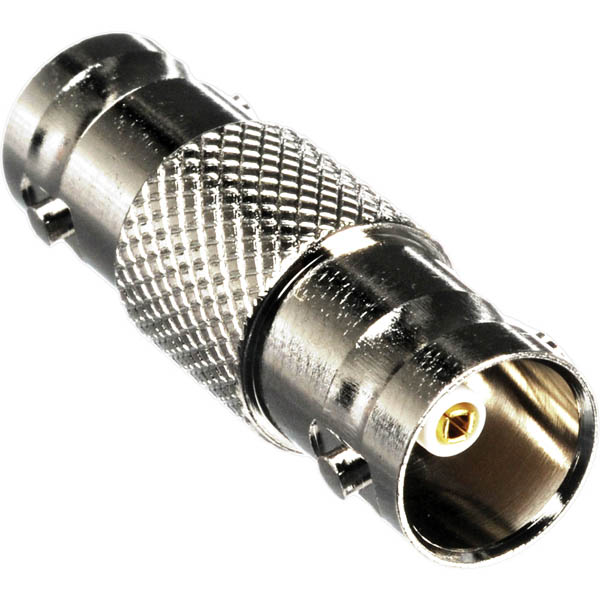

PK-BNC-2

Female to Female;
Impedance:75ohm;
Inner Copper,outside steel ;
Applicable to all types of security projects;
Intermediate BNC connection;

0.15$
PK-BNC-3P

BNC T type connector;
3 Female ports;
Impedance:75ohm;
Iinner Copper,outside steel
Applicable to all types of security projects
Intermediate BNC connection

0.16$
BNC Male to Female:PK-BNC-MF BNC male to female;
Impedance:75ohm;
Inner Copper, nickel-plated, steel body;
Applicable to all types of projects.
0.16$

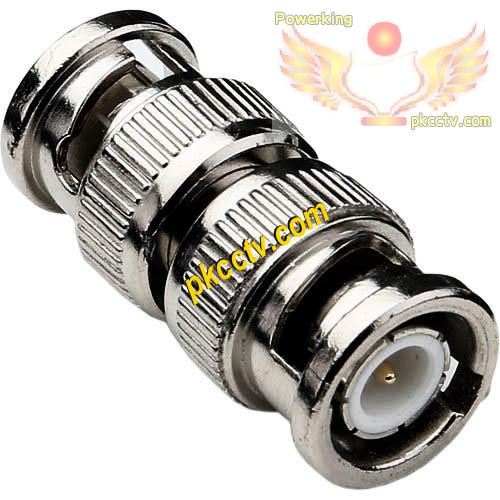

BNC Male to Male:PK-BNC-MM BNC male to male;
Copper core ,steel body;
Impedance:75ohm;
Applicable to all types of monitoring projects;
Intermediate BNC connection ;
0.23$
BNC Male to DC:PK-BNC-MM

BNC Male to DC
Copper core ,steel body
Applicable to all types of monitoring projects

0.33$
