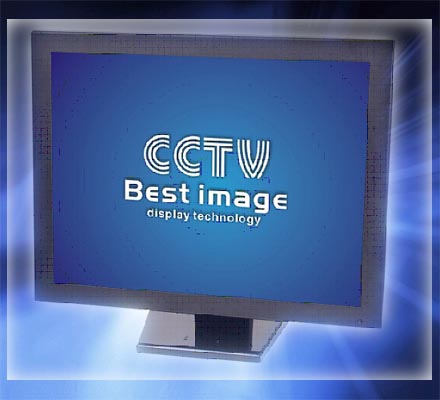

model：B171P-1
LCD specifications	Size	17inch TFT lcd
	Screen ratio	4：3
	Screen distance	0.264mm×0.264mm(H,V)
	Maximum resolution	1280×1024
	Contrast	700:1
	Brightness (cd/m2)	450cd/m2
	Response Time (ms)	8ms
	Perspective	H:85°/85°V:85°/85°
	Life (hrs)	50,000(hrs)
Panel Color	black, custom colors users
Definition	3D digital comb filter (PAL / NTSC)
	3D digital noise reduction
	HD high-definition signals
	Progressive scan
	10-bit LCD panel driver a better over-color, smooth vivid
	WCG-CCFL backlight color
	Dual-screen function
Video Standard	PAL/NTSC	auto-identification
Support of the resolution	640×480(60/72/75HZ)
	800×600(60/72/75HZ)
	1024×768(60/72/75HZ)
Interface	1	Power socket
	2	VGA input
	3	Analog RGB
	4	BNC1/BNC2 input
	5	BNC output
	6	Audio input
	7	Audio output
Button panel	1	Menu button
	2	The left arrow keys
	3	Right arrow keys
	4	Video Converter
	5	Power switch
Amplifier / Power	2 × 16 ohms / 3W
Power machine	Status of work: 35W (maximum); standby: 1W
Button panel	UP,Down,Menu,Power,Left,Right;Mode/ Auto,Menu,Power,Left,Right;Mode
Menu Language	English Chinese; (to be available in multiple languages)
Installation	VESA standard mounting hole
	Custom
Product Architecture	Strong metal chassis, anti-static, anti-magnetic field, strong anti-interference
Temperature / humidity	0 ℃ ~ 50 ℃ / 20% ~ 80% (no condensation)
Storage temperature / humidity	-10 ℃ ~ 60 ℃ / 5 - 95% (no condensation)
Appendix	A Manual
	A warranty card
	AC power cord of a
	A VGA cable
	Wall stent (optional)
	A power adapter
	A certificate
The appearance of size (steel)	390×323×22(mm)
