 99.安防配件 >> 支架 >> 安防支架CCTV-Pole-Series

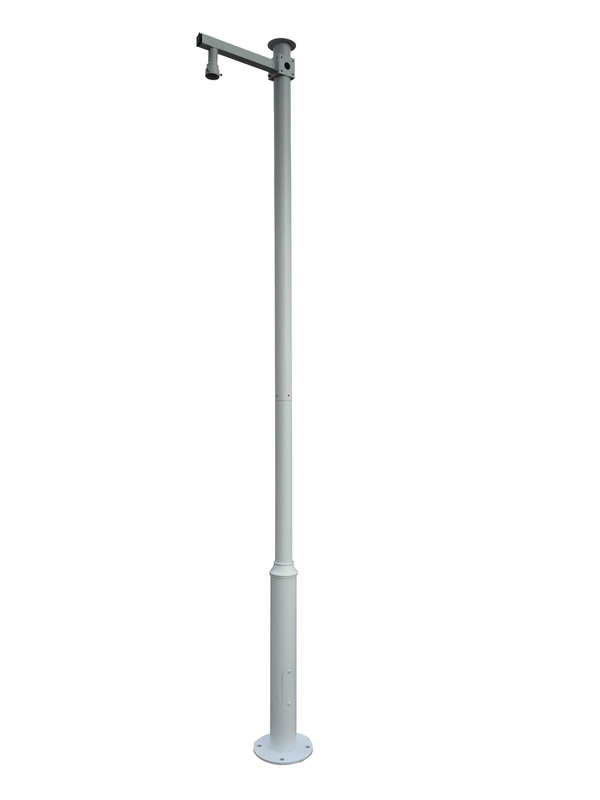

  安防支架CCTV-Pole-Series
编号:120314235
名称:安防支架CCTV-Pole-Series
规格:支架
备注:安防支架杆系列
类别:99.安防配件
价格:
在线洽谈:点击msn聊天点击skype聊天
邮箱:
欢迎联系我们!





    产 品 说 明
Series Picture Model Description Main SPEC
114-76 mm combined pole series CPL-Z3M30DCL 3 Meters combined pole
(not include Combination cage )

Galvanized steel pipe diameter:114mm-76mm
Combined:mixed pole combined,maximum 1 meter of each pole。
Standard accessories:1pcs 300mm Bullet camera E4:E11bracket;Lightning rod, lock nut, bracket mounting wrench, white plug, Instructions.

Advantage:
1. Transport facilities (Compare with traditional pole, small in size, storage space, convenient transport, save freight.)
2. Easy for stock (Storage space, stack-able, no need big warehouse.)
3. Easy to assemble (Five steps and five minutes to finished assemble, fast and easy.)-40082155-
4. Cost-effective (Strict quality control, surface spray molding, rust resistance, all of the accessories coated with zinc.)-9

CPL-Z3M30DCL+
CPL-ZG500
3.5 Meters combined pole
(not include Combination cage )
CPL-Z3M30DCL+
CPL-ZG1000
4 Meters combined pole
(not include Combination cage )
CPL-Z3M30DCL+
CPL-ZG1000+
CPL-ZG500
4.5 Meters combined pole
(not include Combination cage )
CPL-ZC300 300mm Bullet camera bracket 300mm
CPL-ZC500 500mm Bullet camera bracket 500MM
CPL-ZC1000 1000mm Bullet camera bracket 1000MM
CPL-ZQ300 300mm PTZ camera bracket 300mm
CPL-ZQ500 500mm PTZ&bullet camera bracket 500mm
CPL-ZD1000 Combination cage with combined pole
CPL-ZG500 Pole's extension rod 500mm
CPL-ZG1000 1000mm
CPL-T300C 2pcs circles & 2pcs positioning bars
Diameter 114mm Thick tube Combined pole
114mm pole CPL-Z3M30CL-114 3 meter Thick tube Combined pole

Galvanized steel pipe diameter:114mm
extension pole diameter:114mm,
Combined ways: bottom 1.5meter+Top pole 1.5meter work with different extension pole
Standard accessories:1pcs 300mm Bullet camera bracket;Lightning rod, lock nut, bracket mounting wrench, white plug, Instructions.

Advantage:diameter 114mm thick tube 2.5mm Galvanized pole ,Automatic welding is used to ensure the integrity of the whole joint.the length 1.5meter can be load by small car,easy for stock ,transport facilities

CPL-Z3M30CL-114
+CPL-ZG10-114
4 meter Thick tube Combined pole
CPL-Z3M30CL-114
+CPL-ZG15-114
4.5 meter Thick tube Combined pole
CPL-Z3M30CL-114
+CPL-ZG10-114
+CPL-ZG10-114
5 meter Thick tube Combined pole
CPL-Z3M30CL-114
+CPL-ZG10-114
+CPL-ZG15-114
5.5 meter Thick tube Combined pole
CPL-Z3M30CL-114
+CPL-ZG15-114
+CPL-ZG15-114
6 meter Thick tube Combined pole
CPL-ZG10-114 114mm Pole's extension rod 1meter Galvanized steel pipe diameter:114mm
CPL-ZG15-114 Galvanized steel pipe diameter:114mm
CPL-ZC30-114 Bullet camera bracket (Thick tube Combined pole ) Length:350mm,with Universal joint,Galvanized steel
CPL-ZC50-114 Double bullet camera bracket(Thick tube Combined pole) Length:500mm,Double bullet,with Universal joint,Galvanized steel
CPL-ZC100-114 Double bullet camera bracket(Thick tube Combined pole) Length:1000mm,Double bullet,with Universal joint,Galvanized steel
CPL-ZQ30-114 PTZ camera bracket(Thick tube Combined pole) Length:350mm,with connection head,Galvanized steel
CPL-ZQ50-114 PTZ&Bullet camera bracket(Thick tube Combined pole) Length:500mm,PTZ camera connection head,bullet with Universal joint,Galvanized steel
CPL-ZD15-114
Combination cage (Thick tube Combined pole) work with Thick tube Combined pole
