|  产 品 说 明 | Precision Battery Simulation and Variable DC Power Supply – Ideal for Electronic Engineers (12V/2.5A, Ultra-Low Power, Software-Free)
1. Sampling rate: 10k
2. Output voltage: 1-12v
3. Current range: 0.1uA-3A (instantaneous 5A)
4. Current resolution: 0.1uA
5. Voltage ripple: <10mv
6. Accuracy at uA range: 1%±1uA
7. Accuracy at mA range: 1%±0.2mA
8. Maximum output power: 24W

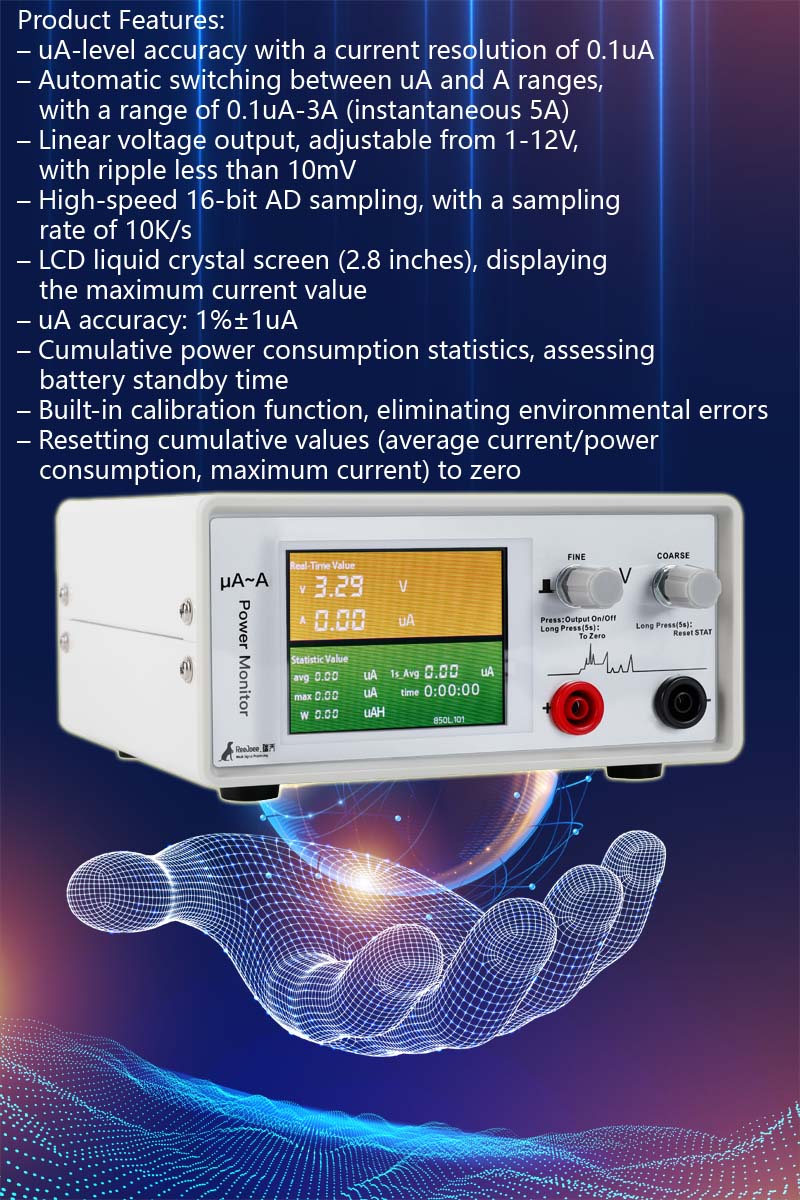

Product Features:
– uA-level accuracy with a current resolution of 0.1uA
– Automatic switching between uA and A ranges, with a range of 0.1uA-3A (instantaneous 5A)
– Linear voltage output, adjustable from 1-12V, with ripple less than 10mV
– High-speed 16-bit AD sampling, with a sampling rate of 10K/s
– LCD liquid crystal screen (2.8 inches), displaying the maximum current value
– uA accuracy: 1%±1uA
– Cumulative power consumption statistics, assessing battery standby time
– Built-in calibration function, eliminating environmental errors
– Resetting cumulative values (average current/power consumption, maximum current) to zero |
