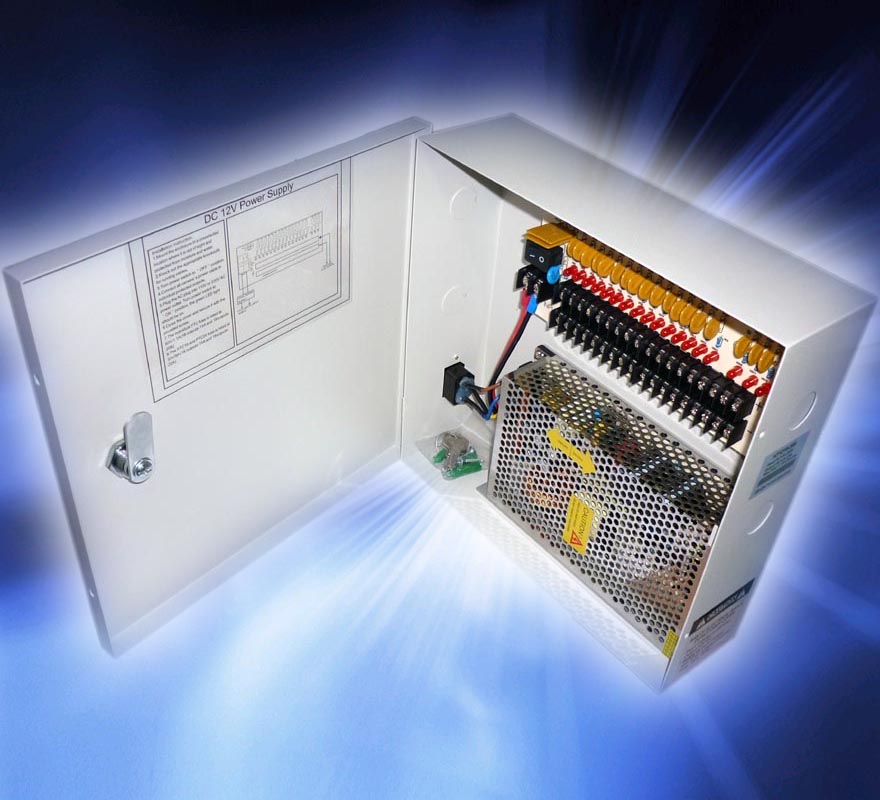

Description for PK1218-20A:
Input Voltage:AC 100-240V Input Voltage:Frequency 50/60Hz
Output Voltage:DC 12V Total Output Current:20A Total Outputs:18 Fuse Type:PTC (Resetable) Fuse Rating:1.1A
Mains power with surge protection Internal ON/OFF switch Metal case with front door keylock
General Protection:each output has individual PTC fuse and LED indicator, when problem occurs, only affect the individual output, other outputs still working. Circuit Short Protection:when short condition occurs, individual PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close. High Voltage Protection:when high voltage occurs, the surge protection will be hit through to protect the connected device. Over Current protection:when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
warranty:1 year warranty.
Application CCTV Camera, PTZ, IR Illuminators, Video Process Equipment, etc. Access Control Reader, Lock, Panel, etc.
Cabinet Dimension:27.5-27-9.2 Packing Dimension:27-26.5-9
Net Weight:2.7kg |
