Network P/T Machine
product name：MJPEG Network P/T Machine
MODEL：PKIC256P PKIC256PW

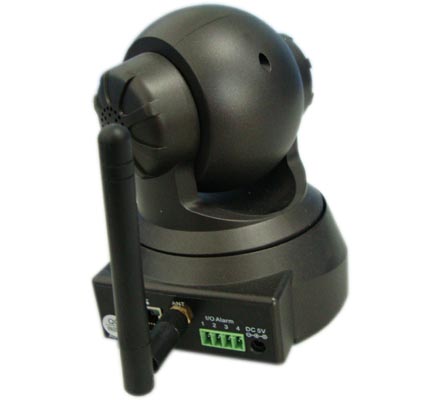

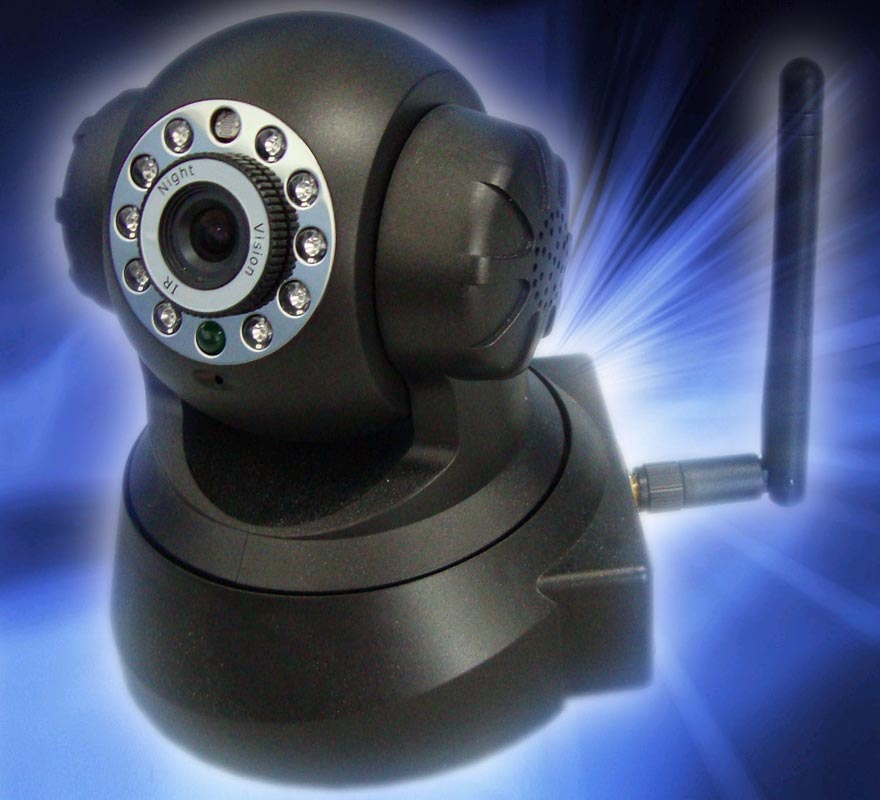

Product Picture：
Product Parameters:
>Simple to setup, Friendly GUI, DIY installation
>High image & video quality,Two-way audio monitoring
>Allow remote Pan/Tilt control (Pan:270°& Tilt:120°)
>Auto IR-LED illumination for night vision (up to 8 metres)
>Allow remote viewing & record from anywhere anytime
>Support IE browser or any other standard browsers
>Wi-Fi compliant with wireless standards IEEE 802.11b/g
>Support both WEP & WPA Encryption
>Motion detection alert via email or upload image to FTP
>Multi-level users management with password protection
Specification：
|
ITEMS |
PKIC256P,PKIC256PW |
|
Image Sensor |
Image Sensor |
1/4" Color CMOS Sensor |
|
Disaplay Resolution |
640 x 480 Pixels(300k Pixels) |
|
Lens |
f: 6mm, F:2.0 (IR Lens) |
|
Mini. Illumination |
0.5Lux |
|
Lens |
Lens Type |
Glass Lens |
|
Viewing Angle |
67 Degree |
|
Audio |
Input |
Built-in Microphone |
|
Output |
Built-in Speaker |
|
Audio Compression |
ADPCM |
|
Video |
Image Compression |
MJPEG |
|
Image Frame Rate |
15fps(VGA),30fps(QVGA) |
|
Resolution |
640 x 480(VGA), 320 x 240(QVGA) |
|
Flip Mirror Images |
Vertical / Horizontal |
|
Light Frequency |
50Hz, 60Hz or Outdoor |
|
Video Parameters |
Brightness, Contrast |
|
Communication |
Ethernet |
One 10/100Mbps RJ-45 |
|
Supported Protocol |
HTTP,FTP,TCP/IP,UDP,SMTP,DHCP,PPPoE,DDNS,UPnP,GPRS |
|
Wireless Standard |
IEEE 802.11b/g |
|
Data Rate |
802.11b: 11Mbps(Max.), 802.11g: 54Mbps(Max.) |
|
Wireless Security |
WEP&WPA Encryption |
|
Physical |
Pan/Tilt Angle |
Horizontal:270° & Vertical: 120° |
|
Infrared Light |
10 IR LEDs,Night visibility up to 8 metres |
|
Dimension |
110(L) x100(W) x108mm(H) |
|
Gross Weight |
768g (Color Box Size:224x209x124mm) |
|
Net Weight |
418g ( accessories included) |
|
Power |
Power Supply |
DC 5V/2.0A (EU,US,AU adapter or other types optional) |
|
Power Consumption |
5 Watts (Max.) |
|
Environment |
Operate Temper. |
0° ~ 55°C (14°F ~ 122°F) |
|
Operating Humidity |
20% ~ 85% non-condensing |
|
Storage Temper. |
-10°C ~ 60° (14°F ~ 140°F) |
|
Storage Humidity |
0% ~ 90% non-condensing |
|
PC Requirements |
CPU |
2.0GHZ or above (suggested 3.0GHz) |
|
Memory Size |
256MB or above (suggested 1.0GHz) |
|
Display Card |
64M or above |
|
Supported OS |
Microsoft Windows 2000/XP/Vista |
|
Browser |
IE 6.0, IE7.0,Firefox or other standard browsers |
|
Certification |
CE,FCC |
|
Warranty |
Limited 1-year warranty |
|
