 09.Camera >> IP Camera >> Infrared IP Camera PK-D920

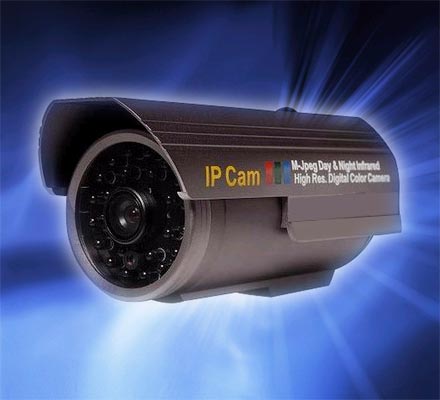

  Infrared IP Camera PK-D920
Product Name:Infrared IP Camera PK-D920
Product S/N:3618455916
Specification:Infrared IP Camera
Product Feature:
Product Class:09.Camera
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description
Products :

﹡motion-JPEG
﹡CMOS 300,000 pixel
﹡VGA: 640 x 480 /CIF: 320 x 240
﹡Night vision: Φ5mm *24, IR 20m
﹡Center management software: 1, 4, 9, 16, 25, 36, 64
﹡infrared box and indoor use

parameter:
Country of Origin:
  • China (mainland)
Primary Competitive Advantages:
  • Country of Origin
  • Quality Approvals
  • Service
Main Export Markets:
  • Eastern Europe
  • Mid East/Africa
  • Central/South America
  • Asia
Key Specifications/Special Features:
  • Hardware:
    • CPU: DSP and MCU
    • OS: built-in OS
  • Video:
    • Compression format: motion-JPEG
    • Signal system: CMOS 300,000 pixel
    • Frame ratio: 25fps
    • Resolution:
      • VGA: 640*480
      • CIF: 320*240
    • Picture adjust: brightness, contrast, chroma, and saturation
    • Minimum illumination: 0.1 lux/F1.2
    • S/N ratio: more than 48DB(AGC off)
    • Shutter speed: 1/50s(1/60s)-1/100,000s
    • White balance: auto
    • Backlight balance: auto
    • Night vision: Φ5mm*24, IR 20m
  • Lens:
    • Standard:CS 6MM 45°
  • Audio:
    • Processor: no
    • Audio gain: no
  • Network:
    • Internet interface: RJ-45, 10/100MB Ethernet network
    • Protocol: TCP/IP, HTTP, ICMP, DHCP, FTP, SMTP, PPPoE, and so on
    • Wireless: no
    • IP mode: dynamic IP address, static IP address, PPPoE
  • Others:
    • Shape: infrared box and indoor use
    • Power: DC 5V 2A
    • Temperature: -10-50° C
    • Humidity: 95% RH
    • Size:
      • Camera: 175*74*82mm
      • Pack: 278 *196 *106mm
    • Weight:
      • Net: 392g
      • Gross: 900g
    • Attachment: adapter, disc, and bracket
  • Alarm:
    • Input/output: 1/1
    • Intelligent motion detection: motion detection setting
    • Alarm action: supports e-mail, notes alarm
  • System requirement: Windows 98/SE/ME/2000/XP, IE 5.0, NET4.5 or above
  • Features:
    • Safety settings: supports the two-level password: administrator and user authority
    • Center management software: 1, 4, 9, 16, 25, 36, and 64 monitor pictures in one screen of client software, remote access by mobile
