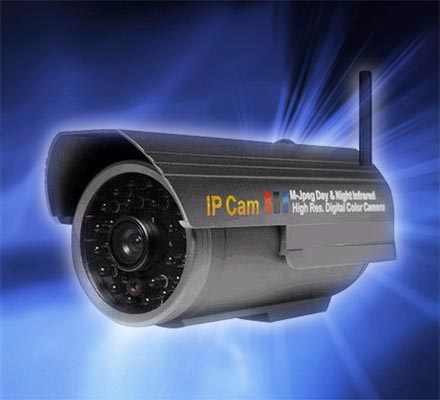

| Wireless IP Camera (Model：PK-C920A) | |
|
|
|
 |
|
Products : |
|
﹡Wireless:wifi.802.11b/g
﹡motion-JPEG
﹡CMOS 300,000 pixel
﹡ VGA: 640 x 480 /CIF: 320 x 240
﹡Night vision: Φ5mm x 24, IR 20m
﹡Center management software: 1, 4, 9, 16, 25, 36, 64
﹡Shape: infrared box and indoor use
| |
|
|
| | |
|
|
|
|
parameter： |
|
Country of Origin:
Primary Competitive Advantages:
- Country of Origin
- Quality Approvals
- Service
Main Export Markets:
- Eastern Europe
- Mid East/Africa
- Central/South America
- Asia
Key Specifications/Special Features:
- Hardware:
- CPU: DSP and MCU
- OS: built-in OS
- Video:
- Compression format: motion-JPEG
- Signal system: CMOS 300,000 pixel
- Frame ratio: 25fps
- Resolution:
- VGA: 640 x 480
- CIF: 320 x 240
- Picture adjust: brightness, contrast, chroma, and saturation
- Minimum illumination: 0.1 lux/F1.2
- S/N ratio: more than 48DB(AGC off)
- Shutter speed: 1/50s(1/60s)-1/100,000s
- White balance: auto
- Backlight balance: auto
- Night vision: Φ5mm x 24, IR 20m
- Lens:
- Audio:
- Processor: no
- Audio gain: no
- Network:
- Internet interface: RJ-45, 10/100MB Ethernet network
- Protocol: TCP/IP, HTTP, ICMP, DHCP, FTP, SMTP, PPPoE, and so on
- Wireless: wifi,802.11b/g
- IP mode: dynamic IP address, static IP address, PPPoE
- Others:
- Shape: infrared box and indoor use
- Power: DC 5V 2A
- Temperature: -10-50° C
- Humidity: 95% RH
- Size:
- Camera: 175*74*82mm
- Pack: 278 x 196 x 106mm
- Weight:
- Attachment: adapter, disc, and bracket
- Alarm:
- Input/output: 1/1
- Intelligent motion detection: motion detection setting
- Alarm action: supports e-mail, notes alarm
- System requirement: Windows 98/SE/ME/2000/XP, IE 5.0, NET4.5 or above
- Features:
- Safety settings: supports the two-level password: administrator and user authority
- Center management software: 1, 4, 9, 16, 25, 36, and 64 monitor pictures in one screen of client software, remote access by mobile
| | |
|
Product Description
