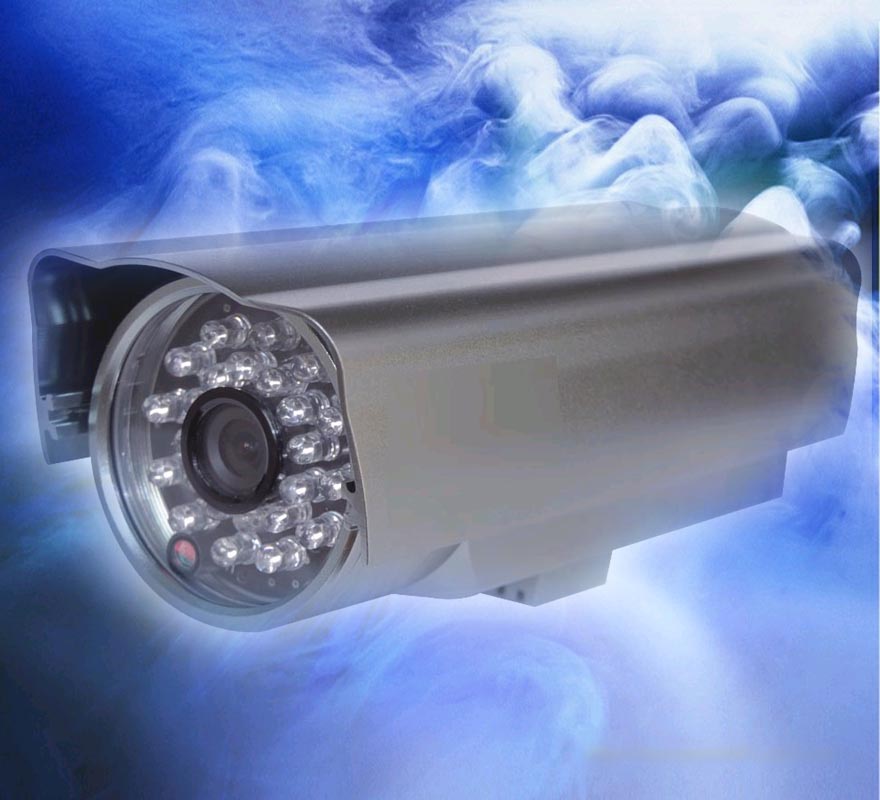

  Infrared Waterproof IP Camera PK-A105
Product Name:Infrared Waterproof IP Camera PK-A105
Product S/N:3715251816
Specification:Infrared Waterproof IP Camera
Product Feature:
Product Class:07.Camera
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description
Products :

﹡Compression format: MPEG-4
﹡Resolution: D1: (720*576),CIF:(352*288),FIELD:(720*288),QCIF:(176*144)
﹡Image sensor: Sony CCD, 420TVL
﹡Night vision: Φ5mm x 24 LED, IR 20m
﹡Control: RS485, S interface
﹡free dynamic domain name, no need to register
﹡software, remote access by mobile
﹡Shape: waterproof(IP66), box, outdoor use


parameter:
Country of Origin:
  • China (mainland)
Primary Competitive Advantages:
  • Country of Origin
  • Quality Approvals
  • Service
Main Export Markets:
  • Eastern Europe
  • Mid East/Africa
  • Central/South America
  • Asia
Key Specifications/Special Features:
  • Hardware:
    • CPU: 32-bit RSIC embedded processor
    • OS: built-in OS
  • Video:
    • Compression format: MPEG-4
    • Signal system: PAL or NTSC
    • Frame ratio: 25fps
    • Resolution:
      • D1: 720 x 576
      • CIF: 352 x 288
      • FIELD: 720 x 288
      • QCIF: 176 x 144
    • Picture adjust: brightness, contrast, chroma, and saturation
  • CCD module:
    • Image sensor: Sony CCD, 420TVL
    • Minimum illumination: 0.1 lux/F1.2
    • S/N ratio: more than 48dB
    • Shutter speed:
      • PAL: 1/50s-1/100,000s
      • NTSC: 1/60s-1/100,000s
    • White and backlight balance: auto
    • Output: BNC, 1.0Vp-p/75Ω
  • Lens:
    • Standard: F1.2, 6mm, M12 x 0.5
    • Selected: F1.2, 3.6mm, 4mm, 8mm, M12 x 0.5
  • Audio:
    • Processor: unidirectional voice monitor (built-out mic)
    • Audio gain: AGC
  • Network:
    • Internet interface: RJ-45, 10/100MB auto-adapted Ethernet
    • Protocol: TCP/IP, HTTP, ICMP, DHCP, FTP, SMTP, PPPoE, and so on
    • RTSP: support RTSP 3G mobile monitor (Nokia Sybiam S60 System, Windows mobile system
    • IP mode: dynamic or static IP address, PPPOE
  • Control: RS485, S interface
  • Night vision: Φ5mm x 24 LED, IR 20m
  • Alarm:
    • Input/output: 1/1
    • Intelligent motion detection: motion detection setting
    • Monitor numbers: 16
    • Alarm action: supports e-mail picture, FTP picture, FTP video, and notes alarm
  • System requirement: Windows 98/SE/ME/2000/XP, IE5.0, NET4.5 or above
  • Features:
    • Safety settings: supports the two-level authority, password
    • Dynamic IP address: free dynamic domain name, no need to register
  • software, remote access by mobile
  • Others:
    • Material: aluminum alloy
    • Shape: waterproof(IP66), box, outdoor use
    • Power: DC 12V 1A
    • Temperature: -10-50°C
    • Humidity: 95% RH
    • Size:
      • Camera: 214 x 71 x 74mm
      • Pack: 278 x 196 x 106mm
    • Weight:
      • Net: 950g
      • Gross: 1,450g
    • Attachment: adapter, disc, manual, and bracket
