model：PK211P-1 |
| LCD specifications |
Size |
21inch TFT lcd |
| Screen ratio |
4：3 |
| Screen distance |
0.264mm×0.264mm(H,V) |
| Maximum resolution |
1600×1200 |
| Contrast |
1000:1 |
| Brightness (cd/m2) |
500cd/m2 |
| Response Time (ms) |
8ms |
| Perspective |
175°/175° |
| Life (hrs) |
50,000(hrs) |
| Panel Color |
black, custom colors users
|
Definition
|
3D digital comb filter (PAL / NTSC) |
| 3D digital noise reduction |
| HD high-definition signals |
Progressive scan
|
|
10-bit LCD panel driver a better over-color, smooth vivid
|
| WCG-CCFL backlight color |
| Dual-screen function |
| Video Standard |
PAL/NTSC |
auto-identification |
| Support of the resolution |
640×480(60/72/75HZ) |
| 800×600(60/72/75HZ) |
| 1024×768(60/72/75HZ) |
| Interface |
1 |
Power socket |
| 2 |
VGA input |
| 3 |
Analog RGB
|
| 4 |
BNC1/BNC2 input |
| 5 |
BNC output |
| 6 |
Audio input
|
| 7 |
Audio output |
| Button panel |
1 |
Menu button |
| |
2 |
The left arrow keys
|
| |
3 |
Right arrow keys
|
| |
4 |
Video Converter
|
| |
5 |
Power switch |
| Amplifier / Power |
2 × 16 ohms / 3W |
| Power machine |
Status of work: 35W (maximum); standby: 1W |
| Button panel |
UP,Down,Menu,Power,Left,Right;Mode/ Auto,Menu,Power,Left,Right;Mode |
| Menu Language |
English Chinese; (to be available in multiple languages)
|
| Installation |
VESA standard mounting hole |
| |
Custom
|
| Product Architecture |
Strong metal chassis, anti-static, anti-magnetic field, strong anti-interference
|
| Temperature / humidity |
0 ℃ ~ 50 ℃ / 20% ~ 80% (no condensation) |
| Storage temperature / humidity |
-10 ℃ ~ 60 ℃ / 5 - 95% (no condensation) |
| Appendix |
A Manual |
| |
A warranty card
|
| |
AC power cord of a
|
| |
A VGA cable
|
| |
Wall stent (optional)
|
|
| |
A power adapter
|
| |
A certificate |
| The appearance of size (steel) |
468×366×31(mm) |
|

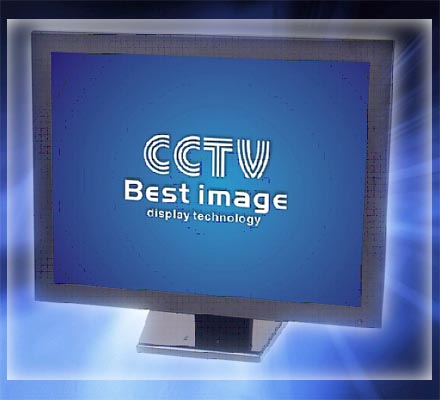

Product Show
