Product Name:CCTV unintterupt PKB1209-5A Product S/N:4221235561 Specification:12V 5A 9 Channel Product Feature:supply DC12V5A current when AC power fails,support one 12V7AH battery Product Class:01.Power Supply Quality Rank: Chat with us: Email:
Product Description

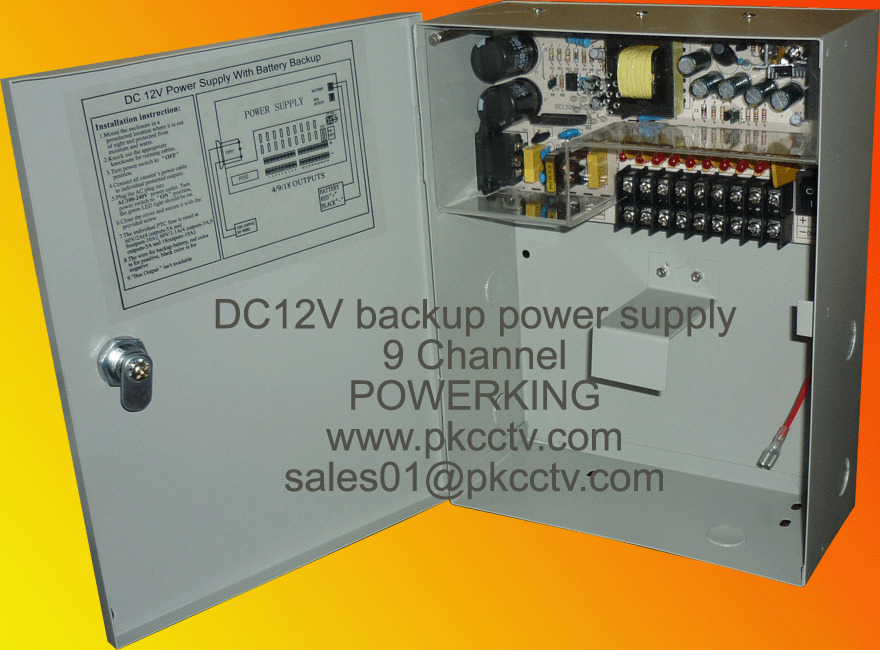

PKB1209-5A is a CCTV unintterupt backup power supply,it can support 1 12V7AH battery. Specifications：
Input 100~240VAC 50 / 60 Hz .
5 amps (60W) supply current.
Output 12VDC.
Output current:5A
Output group：9 Channel
Fuset ype：PTC smart fuse
Main fuses are rated at 5 amps.
individual fuse rate:1.1A
Recommended for 12V/7.0Ah battery charging, it need not be disconnected after charge.
AC power LED indicator.
Short protected outputs.
Surge protected outputs.
Over charge protected battery / Over discharge protected battery / Polarity in reverse protection
Enclosure dimensions(mm): 250H*215W*94D
Weight:2.05Kg
Ease of installation saves time and eliminates costly labor.
