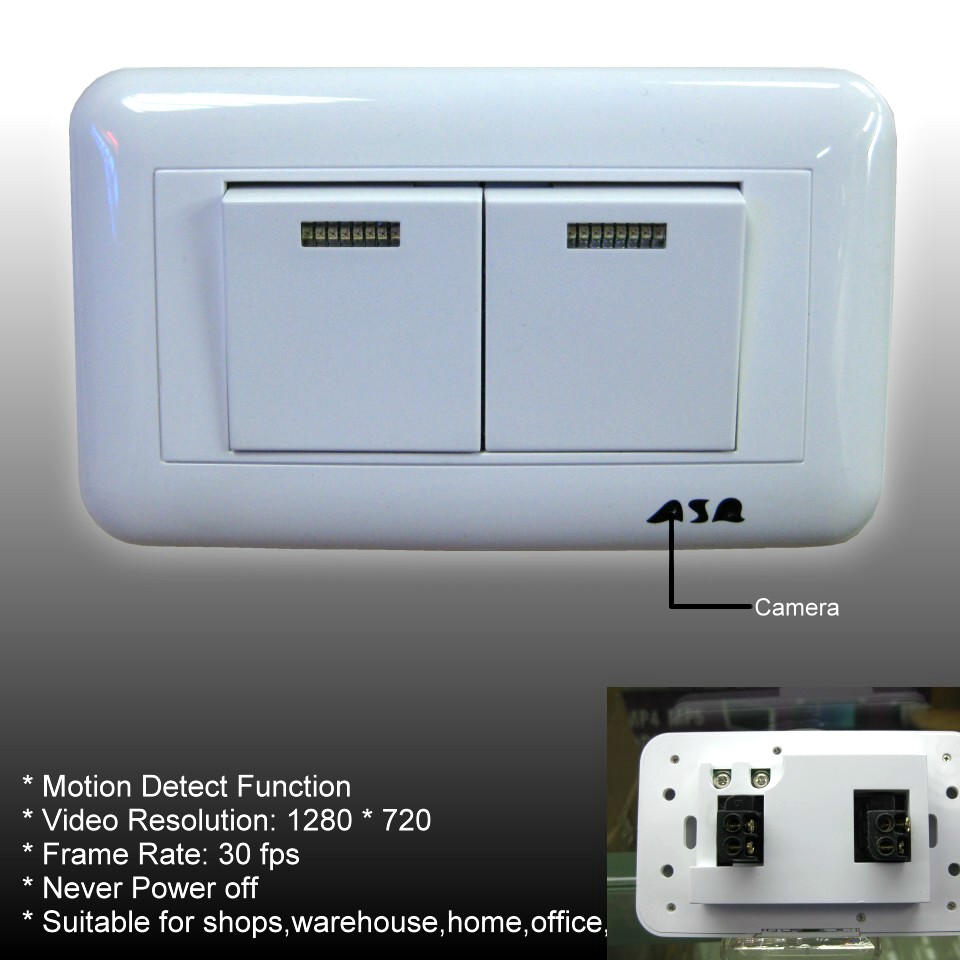

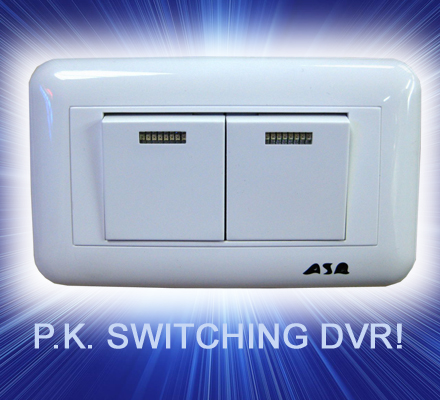

A038 Real Switch DVR with the organic combination of the power switch panel, directly taken from the AC power 110-240V, equipped with infrared night vision sensor, with good concealment, can be used for indoor video with sound, in the dark can be photographed under The desired results, the family around the clock security deployment utility.

Technical Parameters:
1. Video Resolution: 1280 * 720
2. Frame Rate: 30 fps
3. Motion Detect function
4. Loop recording time: 3 minutes
5. Automatically cover recorded files when full

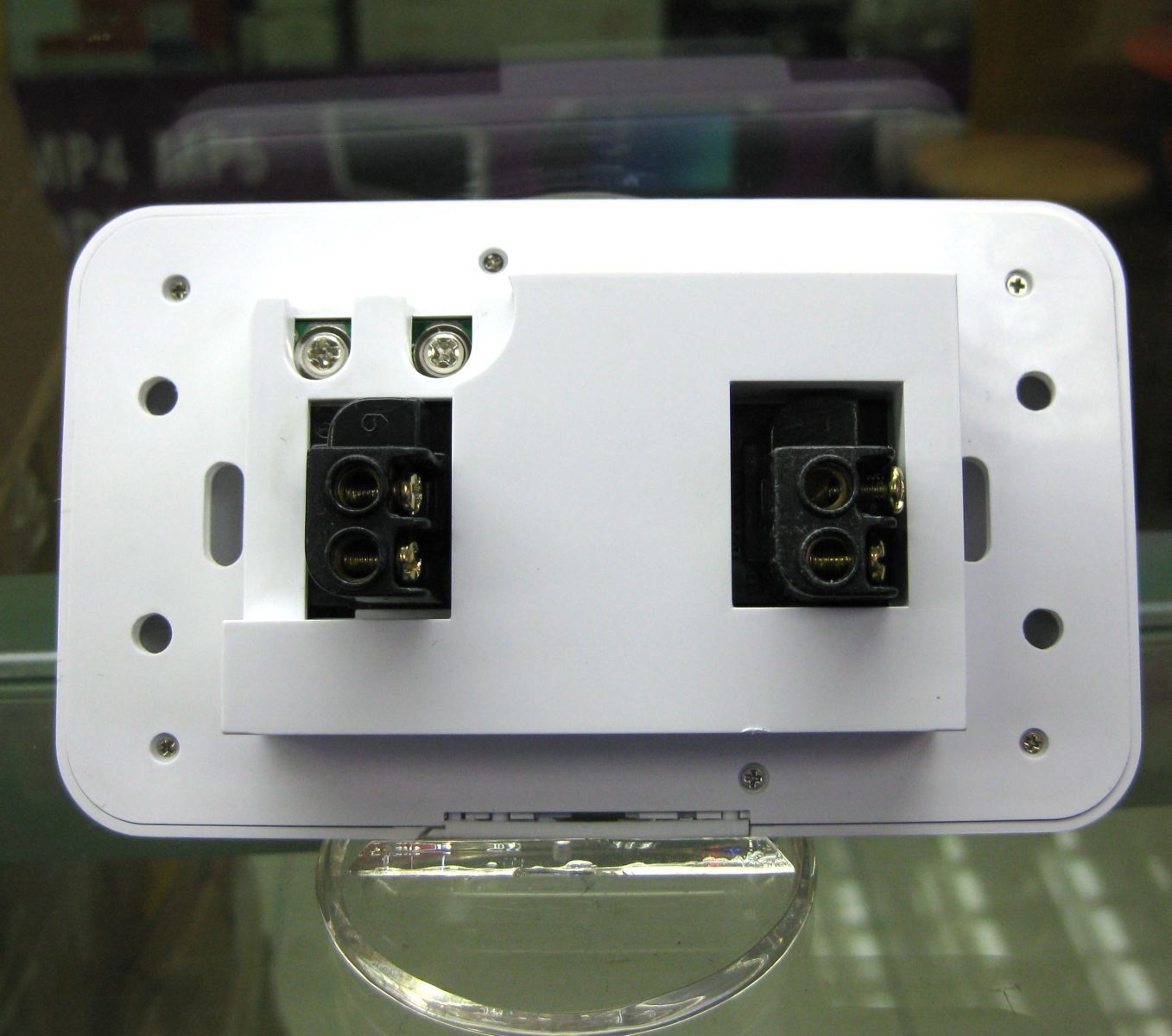

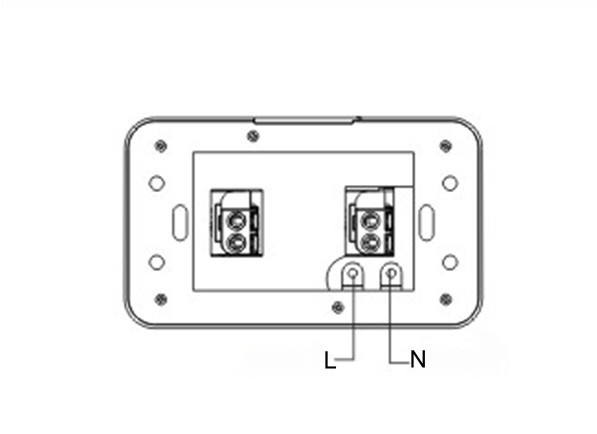

6. Input voltage :110-240V AC

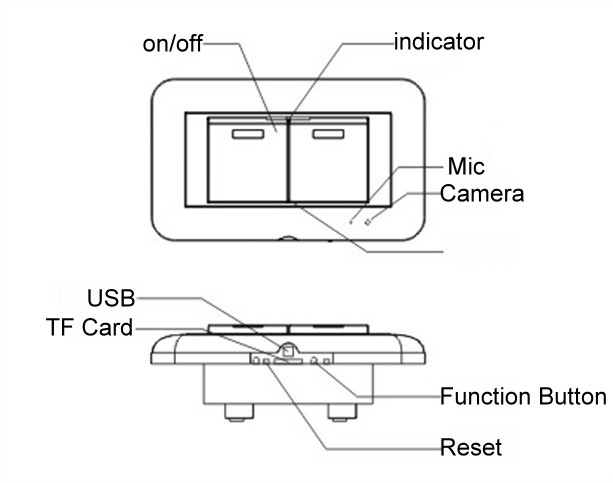

Operational Guidelines:
1. Boot:
Click the start button once, blue light and yellow light on, yellow light goes out after 2 seconds, 5 seconds later the blue lights flash off, the device into motion detection cycle status.
If without  TF card, the blue and yellow lights will flash quickly.
2. Motion Detection:
When an object move around the center of the range of the camera, it start recording, save in every 3 minutes,re-enter standby mode unless there is no activitis, then start recording when some activities happened ,like this cycle status.
3. Manual Operation:
In the motion detection mode, press function button for 2 seconds, while blue and yellow light be on and goes out after 2 seconds, equipment save the current file by motion detection, thent into manual operation status. the blue light and the yellow light will flash in 10 seconds when recording, and save file in every 3 minutes; in manual recording mode, press function button for 2 seconds, the device save the current video file manually, and blue lights flash off after 5 seconds into motion detection mode.
4. Shutdown:
In the boot press the function key 4 seconds, blue light and yellow light flash out in tripple, the machine will save the current video file and shut down.
5. Playback and storage:
   1) connect to the computer via a standard USB cable, the computer can see the corresponding disk drive, open the AVI files unde corresponding path , with video player software for play.
   2) Press the TF card in the slot,it will pop up automatically, TF card, insert the TF card into the card reader and connect to the computer, the recorded images can be copied or pasted to your computer and played on the computer.
Media Player, KM Player,Player Software recommended.
6. Time setting:
Create a file named TIME.TXT in text file, content formats such as:
2007.04.22 11:20:30
Corresponding (years. Month. Day. Hour,minute, Second)
Copy this file to the root directory of TF card, insert into the device, Take video and saved, succeed in setting new time.
7. Reset:
   When the machine stoped working because of illegal operation or other unknown reasons, you need to reset the product, press the reset button to reset.
8. Plug in USB plug connected to the computer:
the blue / yellow light flash off at the same time after 5 seconds. Then you can charge the device and can deal with the files on the device.
