User Manual
Please read through this user manual before using the product
and keep the manual for future use.
This manual is for reference, any later alteration of technical
specification and product appearance are without further notice.

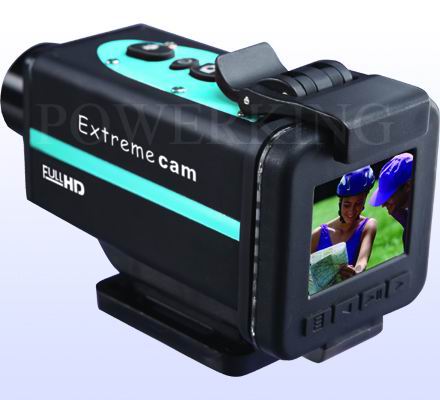

Outdoor Sports Camera
7 8
Function description
Install and take out battery
Please use the appropriate lithium-ion battery (above 3.7V 1700mAH),
any inferior batteries will severely damage the camera.
1) Open the back cover.
2) Open the battery slot door according to the direction of arrow.
3) Insert battery into the battery slot according to the polarity direction as
shown on the battery cover.
4) Close the battery slot door and twist the clasp.
5) Unscrew the cover at the end of the unit and open the battery slot door,
according to the direction of arrow (to the right), turn the knob to open
the battery cover, and take out the battery.
Important: When the battery is low, the low battery icon will appear on the
LCD display. Always upload video footage to your PC prior to replacing
batteries to avoid files loss.
Insert and take out storage card
1.Insert storage card
1) Open the camera back cover
2) Insert the card according to the direction as show
3) Close the cover
2.Take out the storage card
1) Turn off the camera and open the back cover.
2) Press the end of the storage card slightly, it will automatically eject.
3) Close the cover
Notice
a) Before using the SD card, please check whether the key lock on it is locked;
b) Please confirm the inserting direction of the SD card because
reversed inserting may cause damage to the camera and the SD card;
Install and take out battery
Battery charging
1.Install the battery into the battery slot according to the above methods and
close the cover, then connect the charger to the USB port and plug in the
power. When charging, the red light on, full it off.
2. Take out the battery, put it into the charger pedestal according to "+", "-"
poles, connect the charger pedestal to the charger, and then connect the
charger to the power socket.
When the battery is being charged, the light on the charger pedestal is red.
When the battery is fully charged, the indicator turns green.
Notice: a) In order to improve the charging efficiency, please charge the
camera under the shutdown status
b) Please charge under the shutdown status. Please make sure
the AC power is turned on when the charger is pluged.
Button Function Description
Record key: Taking video or stop; under playback mode to enter each frame
playback; under browse mode to enter delete menu.
Power key: Turn on and off the camera; under standby, video or playback
mode to clear screen characters.
Camera key: to take photos under video mode; during video recording and
playback to take snap shot.
Menu key: Under standby mode to switch to movie mode, photo mode and
setting mode; under play movie mode to quit playing; under
photo mode to quit browsing.
Left key: Under video camera to zoom in the image; under photo browse
mode to select the last file; under setting mode to select the last
option.
Confirm key: Under video browse mode to check file and confirm playback;
During playback press to pause; under setting mode to enter and
confirm setting; under delete mode to confirm delete.
Right key: In the zoom in status to zoom out; under browse mode to select
the next file; under setting mode to select the next menu.
Record key Power key Camera key
Menu key
Left key
Confirm key
Right key
1
Contents
Contents
Precaution…………………...........................................................2
Accessories………………………...................................................3
Interface Introduction………….....................................................4
Mounting Description………........................................................5-6
Install and Take out Battery…………………...................................7
Insert and take out Storage Card……...........................................7
Battery Charging…………………..................................................7
Button Function …………………..................................8
Basic Operation…………………...................................................9-10
Play back video footage on TV………...........................................11
PC mode……….........................................................................11
Troubleshooting……………........................................................12
Technical Specification……….....................................................13
Description
6
Mounting Description
9
Operation description
3.Mount the camera to the helmet using base bracket
Thread the rubber strap through base bracket(picture 1, 2, 3), and put the
camera into the base bracket.(Picture 4).
Picture 1 Picture 2
Picture 3 Picture 4
Fasten base bracket using rubber ring from low side to up one.
( Note:do not press the key when mount the rubber rings).(Picture 1, 2, 3)
Picture 1 Picture 2 Picture 3
Mount the rubber to the helmet (as the picture shows)
4
Interface introduction
11
Operation description
Interface Introduction
1.Lens
2.Record key
3.Power key
4.Camera key
5.LCD screen
6.Menu key
7.Left key
8.Confirm key
9.Right key
10.Working indicator
11.Speaker
12.Radiating screw
13. Microphone
14.TV port
15.Charge indicator
16.MIC IN port
17.Battery cover knob
18.Battery cover
19.SD slot
20.HDMI port
21. Switch trigger
22. USB port
Auto power off: 1 min/3 mins/5 minutes/OFF
Auto LCD off: OFF/30s/60s
Format: Yes/No
Language: English/Deutsch/Francais/Italiano/Espanol/Chs/Russian
Default setting: NO/YES
Flicker: 50HZ/60HZ
Time Stamp: OFF/DATE/TIME/DATE/TIME
Auto capture OFF/30secs/60secs
Contrast: standard/hard /soft
Sharpness: standard/hard /soft
ISO: Auto/100/200/400
White Balance: Auto/Sunny/Cloudy/Tungsten/Fluorescent
Exposure: -2/-1.7/-1.3/-1/-0.7/-0.3/0/0.3/0.7/1/1.3/1.7/2
Firmware Version: VER 1.0.0
Play back video footage on TV
1. TV OUT mode
Connect camera to TV video input port and audio input port of with the TV
OUT cable provided. Choose AV mode on TV, the LCD screen of camera
will be off automatically, all operation functions can be shown on TV, and
you can operate camera on TV accordingly.
2. HDMI mode
Turn the camera on, connect camera to HD TV video input port and audio
input port of with the HDMI cable provided. Choose HDMI mode on TV,
the LCD screen of camera will be off automatically, all operation functions
can be shown on TV, and you can operate camera on TV accordingly.
PC Mode
Turn the camera on, connect camera to computer with USB cable. Open
“ My computer”, appears a removable Disk, open the Disk, DCIM file,
100MEDIA file in turn, and you can playback your videos or pictures, also
can download your pictures and your videos in MOV/JPEG format.
10
Operation description
5
Mounting Description
Mounting Description
The camera can be mounted in a number of ways.
Please follow the methods of mounting as suggested below:
1.Mount the helmet grip
Mount the helmet grip into the hole in the bottom of the camera, and slide
to back to make sure it is tight. (picture1, 2)
Picture 1 Picture 2
2.Mount the camera to the helmet using the helmet grip
Follow the above methods to mount the helmet grip to the camera, and
thread the Velcro strap through the helmet grip.(Picture1)
Picture 1
Thread the Velcro strap through the helmet twice(picture 1, 2), then thread
into the buckle to fasten it.(picture 3, 4)
Picture 1 picture 2
Picture 3 picture 4
7.Browse mode
1) Check movies
a)Turn on the camera, press once “Menu key” to enter movie mode, press
“ / ” key to select the preview videos, press “confirm” key to play;
Press “Confirm key” to pause, press again to continue.
b)Press key and hold for 2 seconds to fast forward, press and hold key
for 2 seconds to fast reverse, press “Confirm key” to pause, press “Confirm
key” again to return.
c)When playing, press key to turn up the volume(0-64); Press key to turn
down the volume(64-0).
d)When playing, press once “Video key” to enter each frame playback mode,
press “Confirm key” to quit.
e)Press “Menu key”to quit the camera mode.
2) Check photos
a) Turn on the camera, press twice “Menu key” to enter camera mode, press
“ / ” key to select the preview pictures, press “confirm” key to check
photos.
b) When check photos, press once “Confirm key” to enter Slide mode, press
again “Confirm key” to quit.
c) Press “Menu key” to quit camera mode.
8.Setting mode
Turn the camera on, press “Menu key” three times to enter setting mode,
press / key to select, and press “Confirm key” to confirm, press “Menu
key” reverse to setting mode.
Resolution: FULLHD/1080P25/720P 60/720P 30/720P 25/WVGAP 60
/WVGAP 30/QVGA/QVGAP20
Record overwrite: NO/2 mins/5 mins/15 mins (Note: Under Detection mode,
loop recording is invalid)
Time setup: YY/MM/DD/HH/MM
Motion Detection: NO/1 min/3 mins/5 mins
Size: 3M/5M/8M/12M/16M
Quality: H/M/L
TV style: NTSC/PAL
Internal mic Volume: 1/2/3/4/5/6/7/OFF
Beep Sound: On/Off
6.Clear Screen
Under standby, video or playback mode, press “Power key” to clear all
characters appears on screen.
3
Accessories
12
Accessories
1.Rubber strap
2.Velcro
3.USB cable
4.TV cable
5.HDMI cable
6.Microphone
7.Battery
8.Charger
9.Car Charger
10. Charge pedestal
11. User manual
12. Short Velcro strap
13. Long Velcro strap
14. Helmet grip
15. Handlebar grip
16. Suction cup Bracket
18. Rubber ring
19. Base bracket
Troubleshooting
Troubleshooting
There is no display?
Is battery properly installed.
Does the battery need replacing.
After the Action Cam is connected to my PC, it cannot find the New
drive in the “My computer's folder?
Make sure each end of the Action Cam USB cable is properly and firmly
connected.
Make sure your USB port works. Try connecting other USB device to
check if USB port has a malfunction.
I can't capture the video footage?
Make sure there's enough space on the internal memory of Action cam
of the SD card. The display will tell you how much time left for video
recording.
If the SD card you inserted has capacity available, make sure it is not
locked. It can't take video footage if card is locked.
The remaining time is not accurate?
The remaining time is not always accurate, it's an estimate.
The remaining time depends not only on the time recorded, but on the
color density of the video footage, under conditions with high contrast
(such as outdoor), the actual time available will be less than under
low-contrast conditions (such as indoors).
I can't play the video footage on my television?
Make sure to turn the camera on.
Make sure each end of the AV cable is properly and firmly connected to
Action cam and your television.
Please check if TV has been turned to the AV or HDMI mode.
The image is not clear or dim?
Check out the lens whether there has any stain or finger print; use the
Lens cloth to wipe up the Lens before shooting.
2
Precaution
13
Precaution
Pls be well noted with the following guidelines before you use this camera.
* Pls refer to manual instruction and operate the camera correctly. Illeagal
operation may cause damage to camera internal components.
* Do not fall or hit the camera, it may damage the internal components.
* Do not open the battery cover when recording. Otherwise not only it is
unable to save the current video recording document, also possibly
damages other video recording documents which already have stored.
* Make sure install the battery correctly, the error direction of batteries may
cause damage to this cam and cause the fire.
* For your safety, please keep the camera from the children and animals, in
order to avoid accident
* Do not place the camera in a damp or dusty location for extended periods
of time. This may cause a fire or an electrical shock.
* Do not leave the camera in places exposed to extremely high temperatures,
such as under direct sunlight for extended periods of time. This may affect
the camera housing and internal components.
* Do not burn the battery or drop it into the fire.
* Do not make the battery short circuit, do not make any metal touch the
battery end.
* We recommend using Alkaline batteries in temperatures between 0 to 40 .
* Turn off the camera before removing the batteries and the memory card.
The card and the data may be damaged if the memory card is inserted or
removed while the camera is still on.
* Remove the batteries and memory card before storing the camera for long
periods of time, to avoid power loss and camera damage.
* Clean the lens with a blower (typically a small device with a rubber bulb
attached to one end that you pump to produce a stream of air out the other
end), or wipe it with a soft cloth in a spiraling motion to remove fingerprints
or dust.
* The temperature rise is normal when digital cameras in use for a long time
* Do not touch the lens when use the camera, so as not to influence the
photography effect
* Please use the air blower (special lens blowing equipment) to clean lens
or use special lens-cleaning cloth to clean fingerprint or dust on the surface.
Technical Specification
Technical Specification
Sensor 16 Mega pixels for still picture (5 Mega CMOS)
Size 16M 4608*3456;12M 4000*3000;8M 3200*2400;
5 M 2592*1944;3M 2048*1536
Resolution
FULL HD (1920*1080) 30FPS/25FPS
720P (1280*720) 60FPS/30FPS/25FPS
WVGA (848*480)60FPS/30FPS
QVGA (320*240) 30FPS/120FPS
Zoom 4x digital zoom
Video output PAL/NTSC/HDMI output
Audio Built-in microphone/External microphone/speaker
Storage Built-in 64M
support SDHC high speed card (up to 32G)
Lens 150 degree, 5G all glass
File format JPEG/MOV
Power Rechargeable Lion battery 3.7V/1700mAh
Port USB2.0 port /TV OUT/HDMI
Waterproof Waterproof design
Dimension 111*50*61mm
Screen 1.5” inch TFT Screen
....................................................................................................
Download the latest car DVR pricelist!
|
Product Show
Product Description
MSN:
