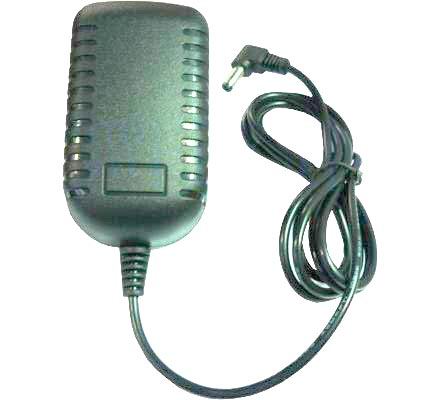

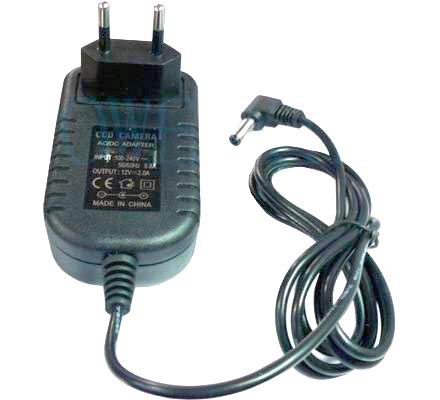

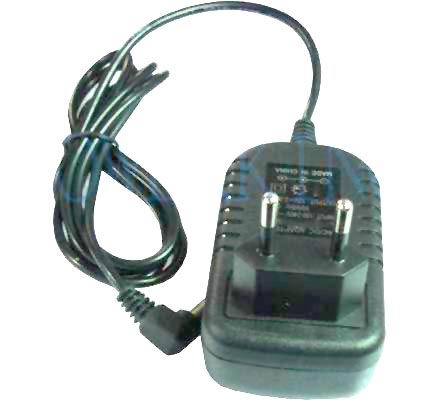

  Wallmount EUROPE CCTV power adapter PKA12V2AW02
Product Name:Wallmount EUROPE CCTV power adapter PKA12V2AW02
Product S/N:111202121
Specification:DC12V2A24W
Product Feature:wall mount,europe plug,ic,smd technology
Product Class:01.Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

Specification:
Class:CCTV adaptor,power adaptor
Model:PKA12V2AW02

ITEM

PKA12V2AW02

Description

12 V 2A DC

Input

Input AC plug

EUROPE wallmount

Input voltage

AC100-240V50/60Hz

Output

Output Connect ing plug :

5.5*2.1mm DC

Output voltage:

12V DC

Output electric current:

2000MA

R ipple wave :

(mVp-p): <1%

Linear modulate:

±0.5%max

Temperature coefficient:

±0.02%/℃

start time

≤1s(240V output,1o=100%)

guard time:

≥20ms(240V input,1o=100%)

Protection

override protection :

115% ~ 150% kvA , automatic recovery

overvoltage protection

30% ~ 150% V AC ,No recovery

short-circuit protection

1 channel : automatic recovery

Environment

working temperature :

0℃ ~ 40℃,10% ~ 90%RH

Store temperature :

-20℃ ~ 85℃,10% ~ 90%RH

ASL :

<3000m

Cooling:

Environment

Size

Size:

X X mm

weight:

G
