Specification Size Chart Packing Photo

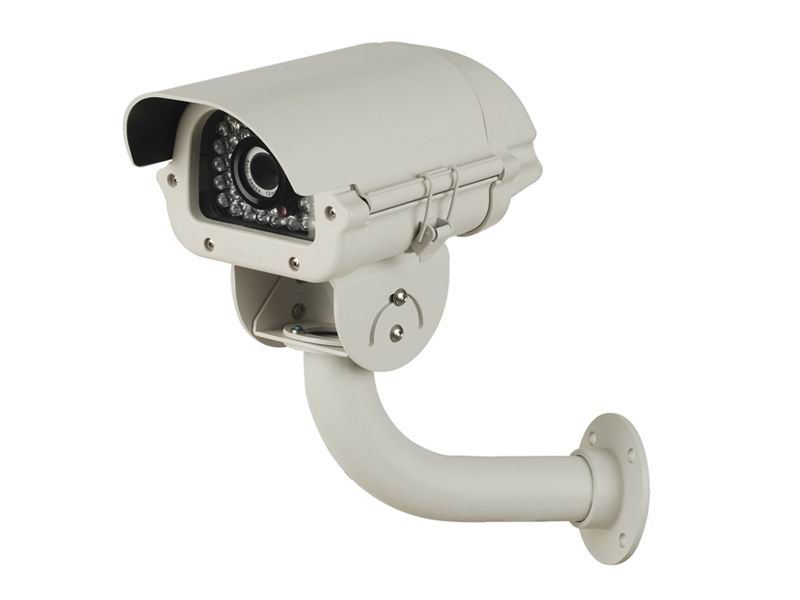

Model Name PK-IC50B-38 PK-IC50B-33   Image Device  1/3 SONY  1/3 SONY   Resolution  540 TVL  420 TVL   Picture Elements PAL:795(H)×596(V) PAL:500(H)×582(V) NTSC:811(H)×508(V) NTSC:510(H)×492(V)   Min. Illumination  0.2 Lux /F2.0  1.0 Lux /F2.0   TV System    PAL/NTSC   Lens Furnished    8mm CS Lens (Optional 12 mm or 16 mm CS Lens)   Infrared Luminary  36 pieces ￠8 mm IR-LED   Illuminate Distance    50 M   Wavelength    850 nm   Waterproofing Criterion    IP 66   S/N Ratio    More than 48dB   Electronic Shutter    NTSC:1/60~1/100,000, PAL:1/50~1/110,000   Gamma    0.45   White Balance    Auto   Gain Control    Auto   Sync. System    Internal   Video Output    1 Vp-p / 75 Ohms   Power Supply    DC12V±10%   Operation  Temperature    -10℃ ~ +50℃ RH95% Max   Dimension    222 x 137 x 100 mm   Weight    2500g
