 Recording Equipment >> SD DVR >> MINI SD DVR PK-DVR-C202

  MINI SD DVR PK-DVR-C202
Product Name:MINI SD DVR PK-DVR-C202
Product S/N:12051216
Specification:SD
Product Feature:2 channels Car DVR
Product Class:Recording Equipment
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

Features:

  • D1/QVGA video resolution selectable
  • Video at D1 resolution: 720X576,QVGA resolution 360X288
  • Pictures at D1 resolution: 720X576,
  • 1 camera recording frame: Pal 25f/s. NTSC 30f/s.
  • 2 cameras recording frame 15f/s, another camera is taking photo
  • 32GB SD/SDHC memory supported
  • Motion detection supported
  • 5s/10s per video clip when motion detected
  • Continuously recording by manually
  • Picture-in-Picture (PIP) real time viewing
  • Overwrite automatically when memory full
  • Connect with PC to playback by USB interfaces

Parameters:

Item

Parameter

AV Input

3RCA input (2 video+1 audio)

AV output

2RCA output (1video+1 audio)

Frame

Pal:25f/s, NTSC:30f/s

Resolution

D1:720X576

QVGA:360X288

Compression

M-JEPG & Standard JPEG

Detect mode

Motion detection

Recording mode

Video recording & take photos

Memory

SD/SDHC Card,≤32GB

USB interface

USB 2.0

Power

DC12V  (5V-36V made by order)

Working electricity

≤250Ma

Working Temperature

-10℃~+50℃

Operation Humidity

20%~85%

DVR Weight

160g

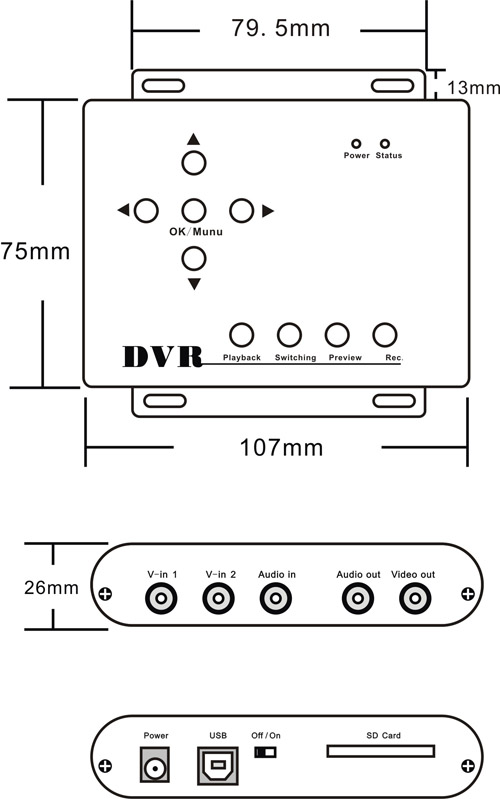

DVR Dimension

101X105X26 (LxWxH)



























AV interfaces



2 CAMERAS WORKING AT THE SAME TIME


Switch key and USB interface



PCB Size:



Colour box
