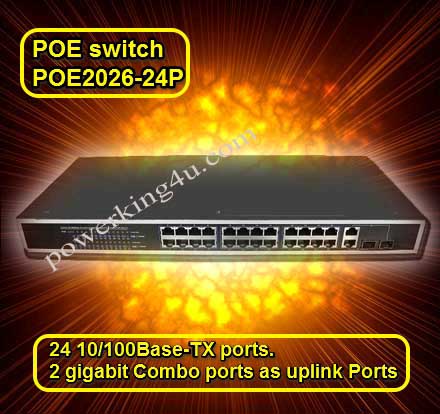

  POE2026-24P
Product Name:POE2026-24P
Product S/N:21516311519
Specification:24ports
Product Feature:POE2026-24P,24 ports
Product Class:02.POE(Power Over Ethernet)
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description
24+2G Unmanaged Ethernet Switch with PoE Injector
Description

The POE2026-24P, an Unmanaged Switch, is designed for residential building in the corridor-level broadband switching equipment, for the edge of the access and LAN to provide high-quality network connections. It also provide the PoE function for powering of wireless LAN (WAN) access points, IP security cameras, VoIP telephone and other low port density installations.

The POE2026-24P is a case-shaped device with a chassis of 1U high. It provides 24 10/100Base-TX ports+2 Gigabit Combo Ports( SFP+RJ45). It provides 8/16/24 PoE Injector.


Features

•   Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3af, IEEE 802.3at
•   Provides twenty-four 10/100Base-TX ports+2 Gigabit Combo Ports( SFP+RJ45)
•   Provides 8/16/24 PoE injector and build in 400W AC power
•   High back-plane bandwidth 8.8Gbps
•   IEEE802.3x Flow control
•   Surge protection for power port and data ports
•   EMI standards complies with FCC, CE class A


Specifications


Item
Description
Summarize
Fixed port
24 10/100Base-TX ports. 2 gigabit Combo ports as uplink Ports
LED Indicators
PWR, PoE, Link/Act VLAN LED.
Input voltage
100V~240V AC,50/60Hz
Power consumption
250W/400W/500W (230W/380W/480 for PoE).
Operating temperature
0℃~40℃.
Storage temperature
-10℃~70℃.
Relative humidity
20%~85% (non-condensing).
Thermal methods
Built-in Noiseless FAN.
Switching capacity
8.8G.
MAC address table
8K.
Traffic control
IEEE 802.3x full-duplex flow control.
PoE
PoE port
8/16/24 10/100Base-TX ports.
PoE Standard
IEEE802.3af, IEEE802.3at, 15.4W at same time, and 30W max per port.
Pin assignment
V+ (RJ45 Pin 1, 2), V- (RJ45 Pin 3, 6).

POE2026-24P
24+2G Unmanaged Ethernet Switch with 24 PoE Injector
