  Integrated Distribution Box 1218-30A
Product Name:Integrated Distribution Box 1218-30A
Product S/N:122316345319
Specification:DC 12V 30A 360W PTC smart Fuse
Product Feature:CE&RoHS,PTC fuse,integrated power distribution unit
Product Class:01.CCTV Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description
  Description for 1218-30A:
  Input Voltage:AC 100-240
  Input Voltage:Frequency 50/60Hz
  Output Voltage:DC 12V
  Total Output Current:30A
  Total Outputs:18
  Fuse Type:PTC (Resetable)
  Fuse Rating:1.6A
  Mains power with surge protection
  Internal ON/OFF switch
  Metal case with front door keylock
  New Technology,lower temperature!
  With voltage and current indicator on the metal case shell.

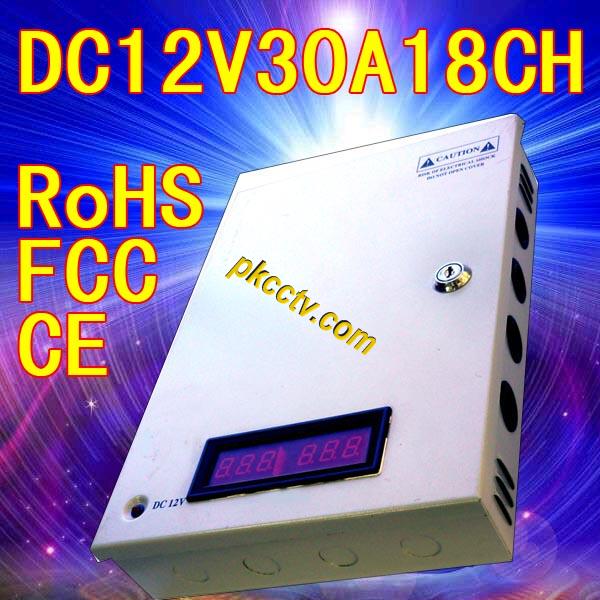

DC12V30A 18Channel power supply box

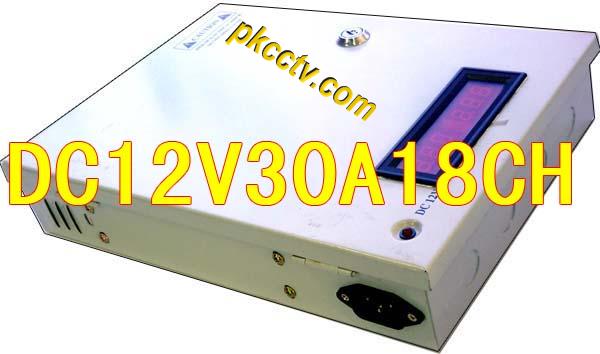

DC12V30A 18Channel power supply box
DC12V30A 18Channel power supply box inner structure
DC12V30A 18Channel power supply box indicator board

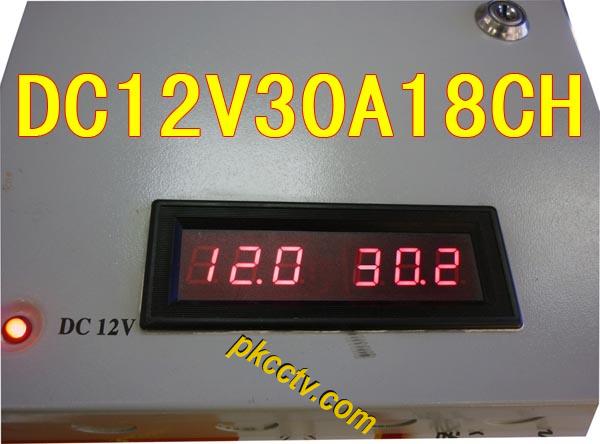

DC12V30A 18Channel power supply box indicator onload




  Certificate:CE &RoHS
  General Protection:each output has individual PTC fuse and LED indicator, when problem  occurs, only affect the individual output, other outputs still working.
Circuit Short Protection:when short condition occurs, individual PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
High Voltage Protection:when high voltage occurs, the surge protection  will be hit through to protect the connected device.
  Over Current protection:when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
warranty:1 year warranty.
  Application
  CCTV Camera, PTZ, IR Illuminators, Video Process Equipment, etc.
Access Control  Reader, Lock, Panel, etc.
  Cabinet Dimension:32 x 22 x 6.5(cm)
  Packing Dimension:32.5 x 22.5 x7(cm)
  Net Weight:2.7kg

Model
1218-30A
Output Group
18
Output Current
30A
Input Voltage
110/220 VAC
Rated Input Voltage
110/220VAC
Input Frequency
50 – 60 Hz
Output Voltage
12V DC
Output Voltage Adjustment Range
10.8 – 13.5V
Max Single Output Current
1.6A
Average Full-load Current
1.6A
Ripple Voltage
<120mV
Dielectric
strength
Input and Output
AC 3.0 KV, 1min, 10 mA Test
Input and Shell
AC 2.5KV, 1 min, 10 mA Test
Output and Shell
DC 500V, 1 min, 10 mA Test
Function of protect
1、Output short protection
2、Output over current protection 3、Output over voltage protection
Safety Standards
GB4943、UL60950、EN60950-1
EMC Standards
GB9254、EN55022 Class B FCC
Certification
CE
Thermal Methods
Natural air convection, metal box conducts heat
Radiation Protection
Metal box shields electromagnetic radiation, Prevents interference
Operation temperature
-20℃ ~ +45℃
Product Dimension
320(L) X 220(W) X65(H) mm
Packing Dimension
325(L) X 225(W) X 70(H) mm
Weight
3Kg
●     Use of efficient, environmental protection switching power supply
●     Optimization of the shape and structure to facilitate the construction systems
●     Small ripple-video output signal more stable, clearer images
●     Splitter output-by-pass failure to protect other equipment to work
●     Power protection-Output over-voltage protection, over-current
Protection, short circuit protection
●     Material of PCB uses 2 ounce brass and fiberglass plate, with
highly mechanical, anti-inflammation (UL94-V0 grade), it’s
best grade in stability, sticking, sobbing, hot decomposition and
expansion, keeps whole product working in best condition.
