 01.CCTV Power Supply >> CCTV Adaptor >> adaptor PK12V1.5A02

  adaptor PK12V1.5A02
Product Name:adaptor PK12V1.5A02
Product S/N:1129162641
Specification:PK12V1.5A02 18W
Product Feature:wall mount,usa plug,led indicator,IC methods
Product Class:01.CCTV Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

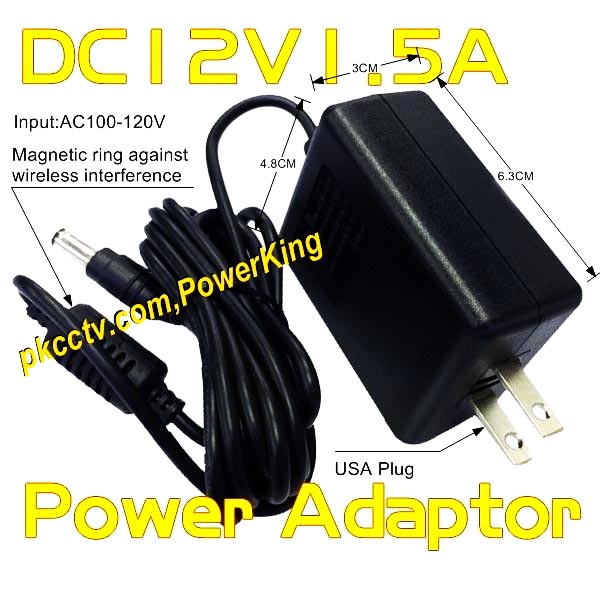

CCTV power adaptor Input:AC100-120V,
Output:DC12V 1.5A.
wall mount  adaptor.
overload protection
shortcircuilt protection
voltage regulated

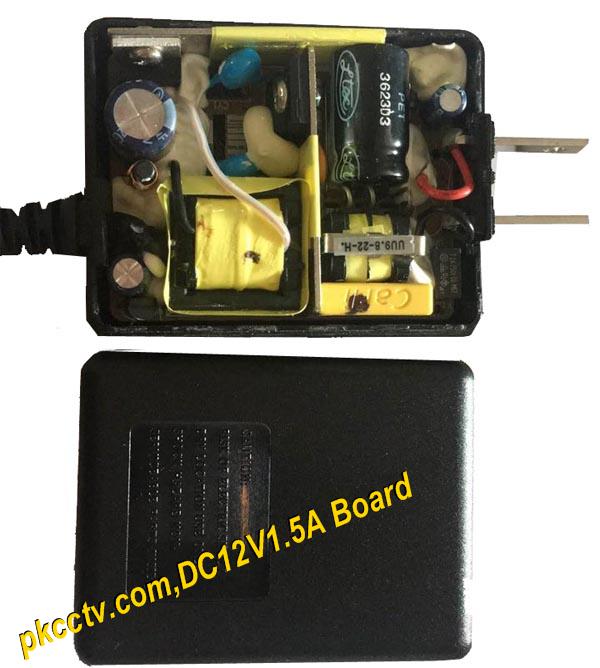

CCTV power adaptor DC12V1.5A PCB board

ITEM

PK12V1.5A02

Description

12 V 1.5A DC

Input

Input AC plug

Optional

Input voltage

AC100-120V50/60Hz

Output

Output Connect ing plug :

5.5*2.1mm DC

Output voltage:

12V DC

Output electric current:

1500MA

R ipple wave :

(mVp-p): <1%

Linear modulate:

±0.5%max

Temperature coefficient:

±0.02%/℃

start time

≤1s(240V output,1o=100%)

guard time:

≥20ms(240V input,1o=100%)

Protection

override protection :

115% ~ 150% kvA , automatic recovery

overvoltage protection

30% ~ 150% V AC ,No recovery

short-circuit protection

1 channel : automatic recovery

Environment

working temperature :

0℃ ~ 40℃,10% ~ 90%RH

Store temperature :

-20℃ ~ 85℃,10% ~ 90%RH

ASL :

<3000m

Cooling:

Environment

Size

Size:

X X mm

weight:

G
