  FULL21MP1080P
Product Name:FULL21MP1080P
Product S/N:12817105520
Specification:CCTV FULL 2.1MP 1080P LENS 3.7MM OSD MENU WDR SECURITY MINI PINHOLE SPY HD SDI CAMERA
Product Feature:CCTV FULL 2.1MP 1080P LENS 3.7MM OSD MENU WDR SECURITY MINI PINHOLE SPY HD SDI CAMERA
Product Class:09.Camera
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description

Product overview SDI  2.1 Mega Pixel, Panasinic CMOS Sensor
1080p(1920x1080)@30/25fps
Support WDR,3D-DNR,DEFOG
OSD menu,Motion detection,Privacy Zone,HLC,BLC

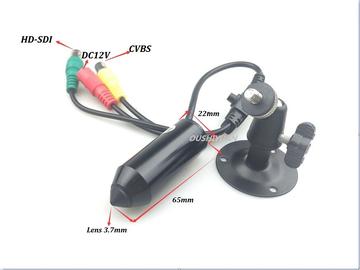

Dual Output-Megapixel HD-SDI(BNC)&CVBS:1.0 Vp-p 750hm
105USD




Technical parameters

Model No.

FULL21MP1080P

Image Sensor

SDI 2.1Mega Pixel, Panasonic CMOS Sensor

Effective pixels

1920(H) x 1080(V)

Scanning system

Progressive Scan

Minimum illumination

0.001 Lux

Lens

3.7mm Korea Lens

IR view distance

N/A

WDR (Long and Short exposure)

OFF/ON(Level Adjustable)

O.S.D

Built-in

3D-DNR (3D Digital Noise Reduction)

OFF/ON(LOW/MIDDLE/HIGH)

Sens-Up

OFF/ON

Motion Detection

OFF/ON

Privacy Zone

OFF/ON

HLC

OFF/ON

B.L.C. control

OFF/ON

Defog

OFF/ON

White balance

AWB/ATW/PUSH/MANUAL

A.G.C

HIGH / LOW

Electronic shutter Speed

AUTO/MANUAL/FLK

Video output

HD-SDI CVBS:1.0 Vp-p Composite Signal (75ohm)

Operation temperature

-10 - +50

Operation Humidity

Within 95% RH

Power supply

DC12V(+/-15%)

Power Consumption

100mA

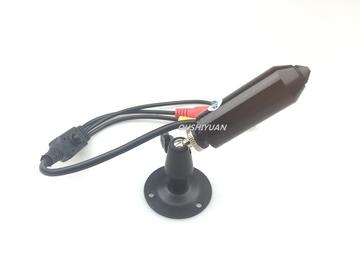

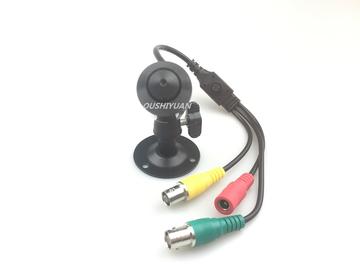

1* SDI   1080P 2.1MP Lens 3.7mm SDI MINI Camera
