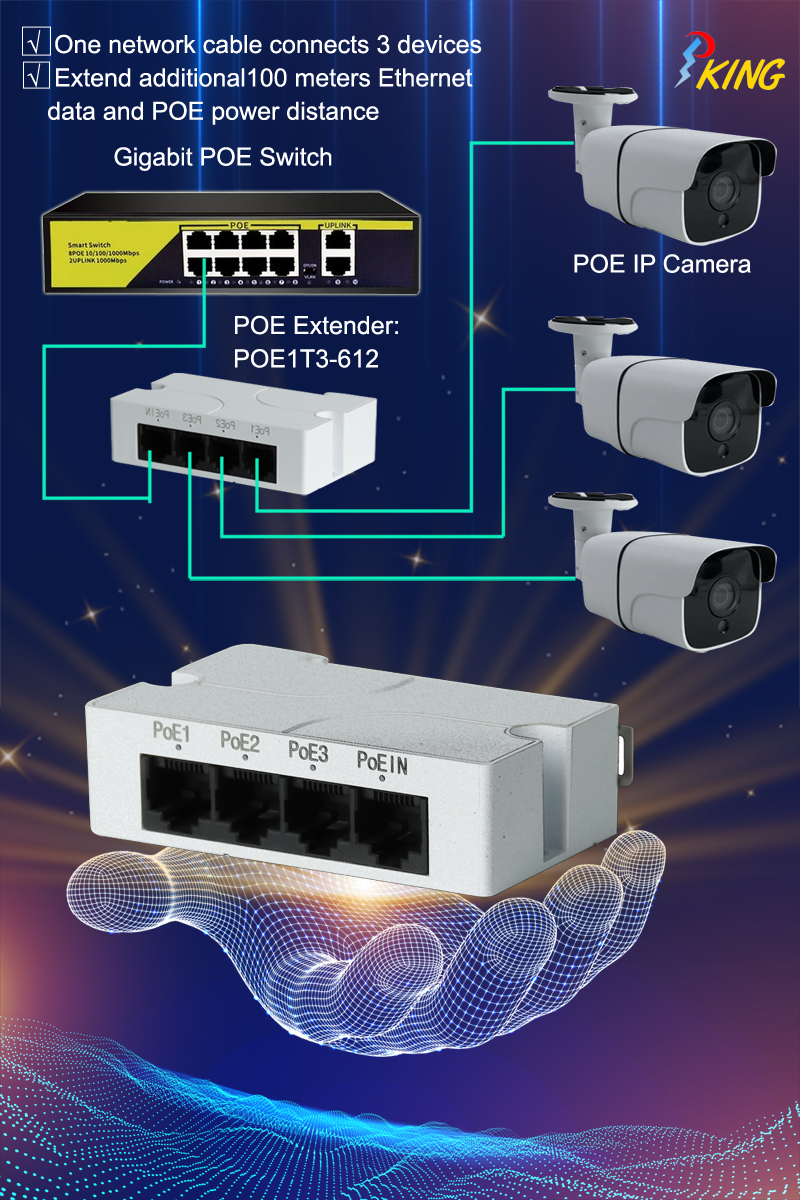

POE Extender 1 to 3
Model:POE1T3-612
PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards.
The PoE Extender supports 10/100Mbps data rates and delivers 802.3af/at power levels, up to 15.4W, The PoE Extender does not require local power and is powered via the PoE input.Extended PoE installation range by additional 100m
Supports 10/100Mbps data rates
- Provides 802.3af power levels when powered by any 802.3at source
- Extenders can be cascaded to reach up to 700m
- Cost effective installation - no need for local power
- Plug and play installation - no configuration needed

Features:
•Comply with IEEE 802.af/at Power over Ethernet
•one POE to three POE，10/100M Supported
•Extender the range of PoE an additional 100 meters
•Automatically detects and protects PoE equipments from being damaged by incorrect installation
•Plug-and Play no configuration required
•3 Port PoE extender can forward both Ethernet and PoE power for 1 terminal equipment via Cat5 ,Cat5e,Cat6,Cat6e,UTP cable.
Product Review:
•3-Port PoE Extender has 10/100M Lan ports,among them,one for power input,the other for power output. Comply with 10/100BASE-TX,IEEE 802.3 af/at-PoE.
•Power input for single port is 15W. Power output for single port is 15W.
Applicable Range:
•Used with AP,IP camera,IP telephone and the other network equipments in the situation of the lack of power line or far away from the power outlets
•Installed at hotels,schools,buildings,villages,etc.
Other Specification:
•PoE input: 1 RJ45 port
•PoE output: 3 RJ45 port
•Network Medium: Cat5 or better UTP cables (less than 120m)
•Repeater Mode: Store and forward
•MAC Address Table: 2K
•Packet Buffer Memory: 48 Byte
•Switching Capacity: 400Mbps
•PoE Standard: IEEE 802.3af/at
•Input power: 30 Watts
•Output power: 15 Watts
•Power Supply Type: 1/2+,3/6-,Mode A,End-Span
•Network Protocol: IEEE 802.3i-10BASE-T, IEEE 802.3u: 100BASE-TX, IEEE 802.3x-Flow Control, IEEE 802.3af-Power over Ethernet;
•Regulation Compliance: FCC Part 15B, ROHS Directive 2011/65/EU,Low Voltage Directive 2014/35/EU,EMC Directive 2004/108/EC;
•Storage Humidity: 5%~90%, No Condensation;
•Dimension: 81x51x23mm •Weight: 60g
Note:
•Please don't place any heavy thing on the PoE extender;
•To prevent the water seeping into the extender,please keep PoE extender away wet environment;
•Suggest to use PoE extender indoors.When installing the extender in outdoor,please install it in a waterproof place.
