 01.CCTV Power Supply >> Power Supply Box >> CCTV power supply PK1218-10A

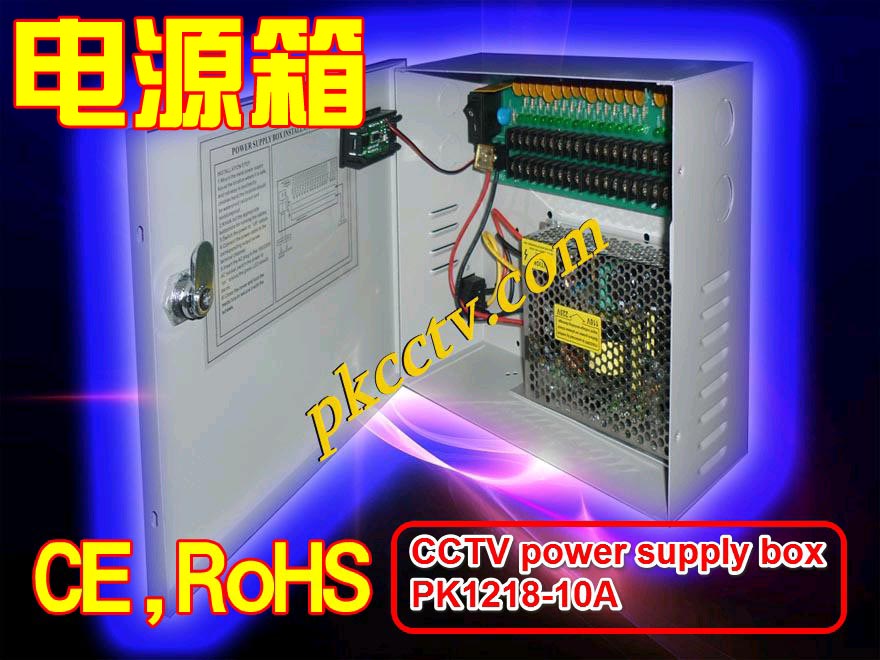

  CCTV power supply PK1218-10A
Product Name:CCTV power supply PK1218-10A
Product S/N:6913455216
Specification:DC12V10A60W,18 channel
Product Feature:PTC fuse,integrated distribution power unit.CE&RoHS
Product Class:01.CCTV Power Supply
Quality Rank:
Chat with us:Click to chat via msnClick to chat via skype
Email:Welcome to contact me for the CCTV power supply business!
    Product Description
  Description for PK1218-10A:
  Input Voltage:AC 100-240V
  Input Voltage:Frequency 50/60Hz
  Output Voltage:DC 12V
  Total Output Current:10A
  Total Outputs:18
  Fuse Type:PTC (Resetable)
  Fuse Rating:1.1A

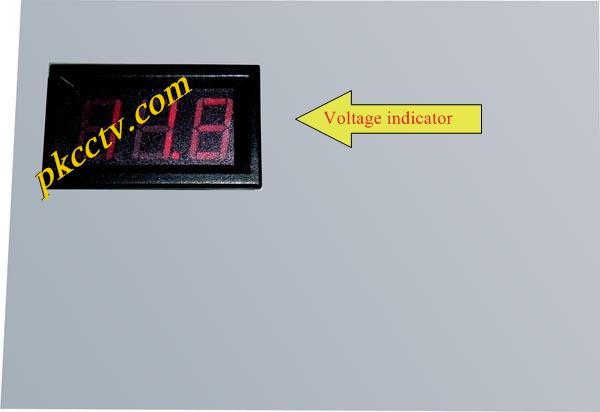

cctv power supply box DC12V 10A 18 Channel with voltage indicator

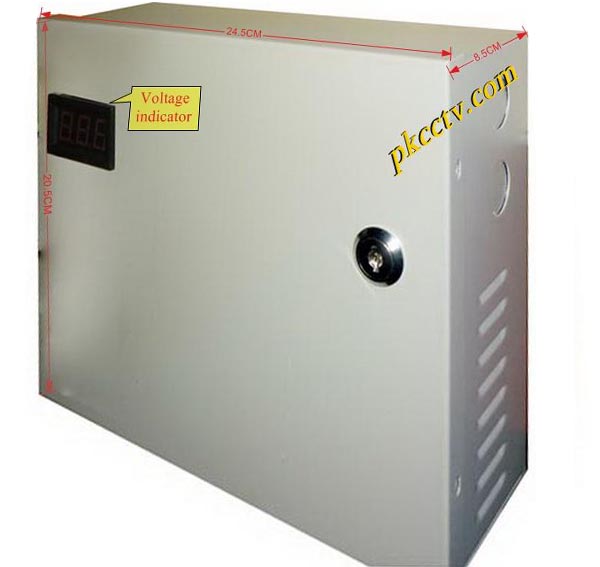

cctv power supply box DC12V 10A 18 Channel with voltage indicator
cctv power supply box DC12V 10A 18 Channel with voltage indicator
cctv power supply box DC12V 10A 18 Channel’s PCB board
Model
PK1218-10A
Output Group
18
Output Current
10A
Input Voltage
85 – 265 VAC
Rated Input Voltage
100 – 240 VAC
Input Frequency
50 – 60 Hz
Output Voltage
12V DC
Output Voltage Adjustment Range
10.8 – 13.5V
Max Single Output Current
1.1A
Average Full-load Current
0.55A
Ripple Voltage
<120mV
Dielectric
strength
Input and Output
AC 3.0 KV, 1min, 10 mA Test
Input and Shell
AC 2.5KV, 1 min, 10 mA Test
Output and Shell
DC 500V, 1 min, 10 mA Test
Function of protect
1、Output short protection
2、Output over current protection 3、Output over voltage protection
Safety Standards
GB4943、UL60950、EN60950-1
EMC Standards
GB9254、EN55022 Class B FCC
Certification
CE、RoHS
Thermal Methods
Natural air convection, metal box conducts heat
Radiation Protection
Metal box shields electromagnetic radiation, Prevents interference
Operation temperature
-20℃ ~ +45℃
Product Dimension
245(L) X 210(W) X 87(H) mm
Packing Dimension
250(L) X 214(W) X 97(H) mm
Weight
2.3 Kg
  Mains power with surge protection
  Internal ON/OFF switch
  Metal case with front door keylock
  Ripple Voltage:<150mv
  Thermal Methods:Natural air convection,metal box conducts heat;
  Radiation pretection:Metal box shields electromagnetic radiation,prevents interference;

  General Protection:each output has individual PTC fuse and LED indicator, when problem  occurs, only affect the individual output, other outputs still working.
Circuit Short Protection:when short condition occurs, individual PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
High Voltage Protection:when high voltage occurs, the surge protection  will be hit through to protect the connected device.
  Over Current protection:when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
warranty:1 year warranty.
Certificates:CE&RoHS
  Application
  CCTV Camera, PTZ, IR Illuminators, Video Process Equipment, etc.
Access Control  Reader, Lock, Panel, etc.
  Cabinet Dimension:24.5 x 21 x 8.7
  Packing Dimension:25 x 21.4 x 9.7
  Net Weight:2.3kg

●     Use of efficient, environmental protection switching power supply
●     Optimization of the shape and structure to facilitate the construction systems
●     Small ripple-video output signal more stable, clearer images
●     Splitter output-by-pass failure to protect other equipment to work
●     Power protection-Output over-voltage protection, over-current
Protection, short circuit protection
●     Material of PCB uses 2 ounce brass and fiberglass plate, with
highly mechanical, anti-inflammation (UL94-V0 grade), it’s
best grade in stability, sticking, sobbing, hot decomposition and
expansion, keeps whole product working in best condition.
